Product Details:
|
| Warranty: | NONE | After-sale Service: | Online Technical Support |
|---|---|---|---|
| Project Solution Capability: | Graphic Design | Application: | Hotel, Water Conservancy |
| Geotextile Type: | Non-Woven Geotextiles | Type: | Geotextiles |
| Color: | Requirement | Material: | PP(polypropylene) PET (polyester) |
| Length: | 50-100m/roll (at Request) | Width: | 1-6m |
| Keyword: | Geotextile Sand Bag Geotextile Bag Geobag | Weight: | 100g-600g/m2 |
| Product Name: | Customered Nonwoven Geotextile Environmental Geobag | Port: | Any Port Of China |

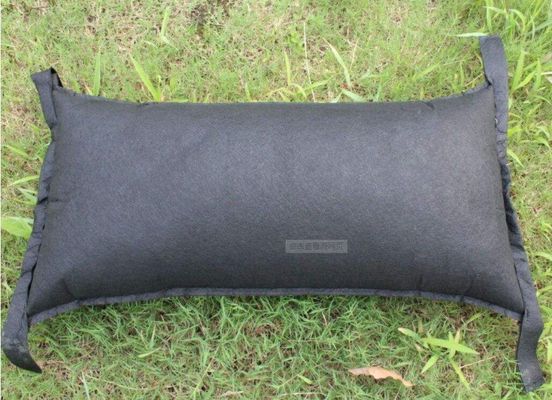

Reinforcement project Nonwoven geotextile geobag
geotube geobag

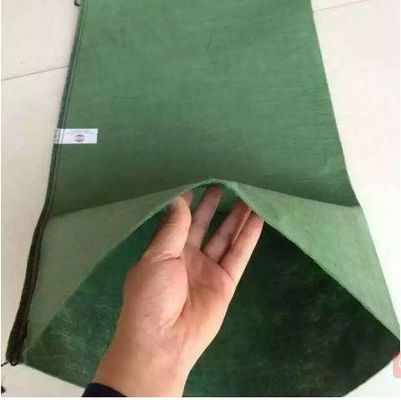

Geotextile bags that component is PP or PET needle punched non woven fabric.

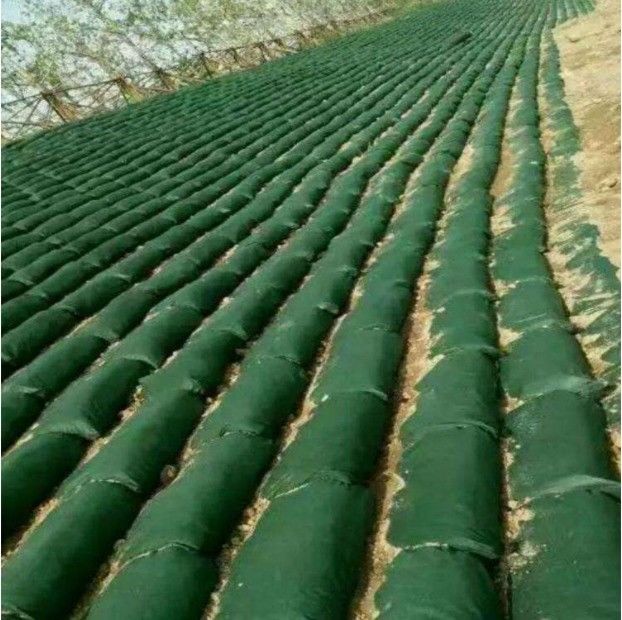

It is a greener environmental protection solutions used for erosion control, embankment or slope protection and shoreline stabilization, stormwater management, and the creation of rain gardens and other functional green spaces.A lot of geotextile bags build into a huge vegetated walls.
Then the walls are planted with the native plants, soli and seeds.Within weeks,the plants grow through the bags and develop extensive root systems that lock into the native soil and form an ecological sound vegetated erosion control system with permanent structural strength.
Product Application:
1.Ecohydraulic Engineering:
Natural environment for both sides of the ecological river,soil and water conservation,reservoir fluctuation zone regreening, wetland project, coastal engineering etc.
2.Highway Engineering:
Roadbed side slope,retaining wall project, massif excavate side slope,bridgepier slope protection,culvert exits and entrances "Eight word" wall,sound protective screen, ecological isolation strip,swelled ground side slope,freeze thawing district side slope etc.
3.Railway Engineering:
Roadbed side slope,retaining wall project, massif excavate side slope,bridgepier slope protection,culvert exits and entrances "Eight word" wall,ecological beauty spot ecological district side slope,ecological fragile district ecological side slope etc.
| PROPERTIES | TEST METHOD | UNIT | MINIMUM AVERAGE VALUE | ||||
|
|
|
| MWG270 | MWG370 | MWG570 | MWG665 | MWG770 |
| Tensile Strength , MD | ASTM D 4595 | kN/m | 38.5 | 52.5 | 70 | 70 | 105.1 |
| Tensile Strength , CD | ASTM D 4595 | kN/m | 35.9 | 47.3 | 70 | 96.3 | 84 |
| Elongation, MD | ASTM D 4595 | % | 25 | 25 | 25 | 25 | 25 |
| Elongation, CD | ASTM D 4595 | % | 25 | 25 | 25 | 25 | 25 |
| Tensile Strength at |
|
|
|
|
|
|
|
| 2%, MD | ASTM D 4595 | kN/m | 7 | 11 | 14 | 17.5 | 21 |
| 2%, CD | ASTM D 4595 | kN/m | 8.6 | 12.3 | 19.3 | 25 | 22.8 |
| 5%, MD | ASTM D 4595 | kN/m | 17.7 | 21.9 | 35 | 35 | 52.5 |
| 5%, CD | ASTM D 4595 | kN/m | 19.8 | 22.8 | 39.4 | 53 | 47.1 |
| Factory Seam Strength | ASTM D 4884 | kN/m | 18.4 | 25.1 | 37.5 | 52.5 | 43.8 |
| Apparent Opening Size | ASTM D 4751 | mm | 0.6 | 0.43 | 0.6 | 0.43 | 0.6 |
| Permittivity | ASTM D 4491 | sec-1 | 0.7 | 0.9 | 0.4 | 0.26 | 0.04 |
| Water Flow Rate | ASTM D 4491 | l/min/m2 | 2037 | 1630 | 1222 | 815 | 611 |
| UV Resistance (% retained after 500 hours) | ASTM D 4355 | % | 80 | 80 | 80 | 70 | 80 |
we have obtained ISO9001 certificate SGS certificate and CE certificate.
Our products are widely applied in many fields, such as road, highway, airway, coal mine, water and soil conservation, water conservancy and basic construction.
Taian Wantong Composite Material Co.,Ltd , established in 2015, is a professional manufacturer engaged in the research, development, production, sale and service of geogrid,geotextile, geomembrane, geocell and nonwoven fabric.
We are located in Taian city with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as South Africa, Australia, Mexico, Philippines, France, Indonesia, Fiji and other countries. We also welcome OEM and ODM orders.
In recent years, our company has introduced a series of advanced equipment including 40 production lines for various kinds of geosynthetics products.Such as 28 geogrid production lines,2 geotextile production lines, 2 geomembrane production lines,1 geocell producttion lines, 2 nonwoven fabric roll production lines and 10 other new composite material production lines.
We are willing to supply good quality products and good service to satisfy customer's need.
1.Which payment do you accept?
For you convinience,our payment can be L/C,TT,Westunion,paypal
2.Are you willing to provide the samples?
We are glad to provide the samples to you if we have the identical or similar samples in our warehouse.
3.May I get a cheaper price?
A favorable discount will be given if there is a large quantity you need.
4.Do the customized designs be accepted?
Yes, we welcome customized designs.
5.How to contact with us?
Choose one product and leave a message there, or see the contact way, there are the contacted detail information.
