Product Details:
|
| Type: | Geomembranes | Warranty: | 1 Year |
|---|---|---|---|
| After-sale Service: | Online Technical Support, Onsite Installation, Onsite Training | Project Solution Capability: | Graphic Design, 3D Model Design, Total Solution For Projects |
| Application: | Other, Pond | Design Style: | Asian |
| Color: | Customized | Thickness: | 0.2mm-3mm |
| Width: | 2m~8m | Length: | 50-200m |
| Surface: | Smooth Face | Name: | HDPE Pond Lining / Dam Liner / Hdpe Geomembrane |
| Keyword: | Hdpe Geomembrane,dam Liner,HDPE Pond Lining | Material: | Virgin/Recycled |

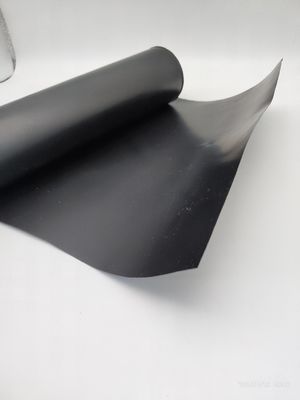

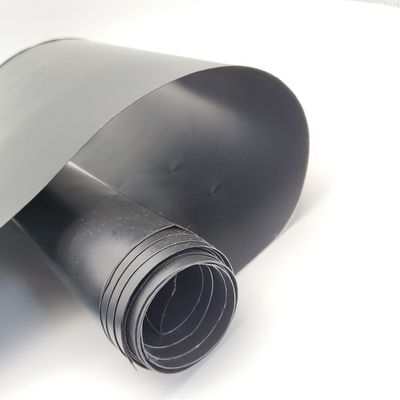

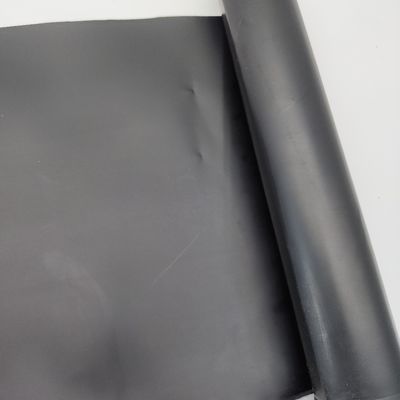

HDPE pond lining / dam liner / hdpe geomembrane
High Density Polyethylene (HDPE) is the high density version of PE plastic and is harder and denser than the LDPE, but is less ductile, and lighter than water. Climax HDPE Film / Sheet / Liner / Geomembrane has proved to be a boon especially for developing countries like India by playing an important role to prevent the air and groundwater pollution. The best thing is that it can be easily moulded and welded together and the use of UV Stabilizers improves its weather resistance. High Density Polyethylene Geomembrane lives up to the expectations which are demanded in today's world of environmental engineering. Climax HDPE's prime motive is to keep the Nature clean.
Function:
1. Complete variety of specifications of width and thickness. Thickness:
2. 0.2-3mm/Width: 2-8m .
3. Excellent environmental stress resistant cracking performance.
4. Excellent performance of chemical erosion resistance.
5. Big scope of application temperature and long service life .

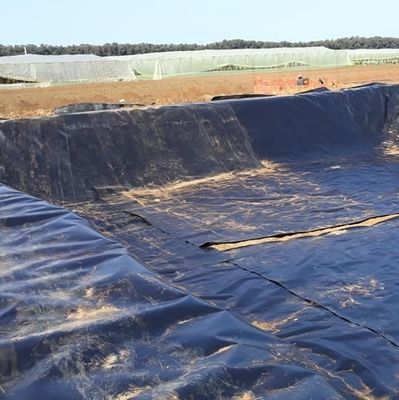

6. Applied in landfill waste site, sewage and filth treatment site, tailings depot and underground construction project
Property | Value | ||||||
0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm | |
Density G/CM3 | 0.94 | ||||||
Tensile properties |
|
|
|
|
|
|
|
Strength at yield, N/mm | 11 | 15 | 18 | 22 | 29 | 37 | 44 |
Break at yield, N/mm | 20 | 27 | 33 | 40 | 53 | 67 | 80 |
Elongation at yield, % | 12 | ||||||
Elongation at break, % | 700 | ||||||
Right angle tear strength, N | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
Puncture strength, N | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
Stress crack resistance using notched constant tensile load, H | 300 | ||||||
Carbon Black Content of a % | 2.0-3.0 | ||||||
Standard OIT,MIN; | 100 | ||||||
Pressure OIT,MIN | 400 | ||||||
Baking 90D later, Reserved standard OIT %; or | 55 | ||||||
Baking 90D later, Reserved Pressure OIT% | 80 | ||||||
Irradiate with UVA after 1600H,Reserved Standard OIT%;or | 50 | ||||||
Irradiate with UVA after 1600H,Reserved pressure OIT% | 50 | ||||||
’-70°C Embrittlement of low-temperature impact | Passed | ||||||
coefficient of permeability of water steam G.CM/(CM2.S.PA) | ≤1.0*10-13 | ||||||
Dimensional Stability (%) | ±2 | ||||||
1. We have our own factory. We can provide what you want in competitive price.
2. Our company provides before-sales, in-sales and after-sales services with heart and soul in engineering construction and products selection.
3. Our company is in strict accordance with national standards and related standards. Our company passed ISO9001 and BV quality system authentication.
4.We have been exporting for 10 years.
We can provide necessary certificates to make customs clearance easier for you.
We know well about container. We can make advice for you to reduce freight without damaging goods.
5.We can provide Certificate of Origin. For Southeast Asia, FORM E and FORM A. For Chile, FORM F. For Africa, C O.
