Philippines Fiberglass Geogrid Composite Geotextile Pavement Geogrid for Garage Shed

Large Image : Philippines Fiberglass Geogrid Composite Geotextile Pavement Geogrid for Garage Shed

Product Details:

Place of Origin:	Shandong, China
Brand Name:	WANTONG
Model Number:	TGSB

Payment & Shipping Terms:

Minimum Order Quantity:	10000 square meters
Price:	$0.99/square meters 10000-199999 square meters
Packaging Details:	Pe film
Supply Ability:	999999999999999 Square Meter/Square Meters per Year

Contact Now

Philippines Fiberglass Geogrid Composite Geotextile Pavement Geogrid for Garage Shed

Description

Type:	Geogrids	Warranty:	2 Years
After-sale Service:	Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection	Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects
Application:	Garage & Shed, Soft Soil Reinforcement	Design Style:	Contemporary
Product Name:	Fiberglass Geogrid Composite Geotextile Pavement Geogrid	Keyword:	Fiberglass Geogrid Composite Geotextile,fiberglass Geogrid
Raw Material:	Fibergalss	Certificate:	CE /ISO9001
Color:	Black	Tensile Strength:	50Kn/m
Width:	5m	Length:	50-200m
MESH SIZE:	12.712.7mm. 25.425.4mm	Port:	Qingdao

Cheap Philippines Russian Federation Fiberglass Geogrid Composite Geotextile Pavement Geogrid

Product Description

Product Introduction

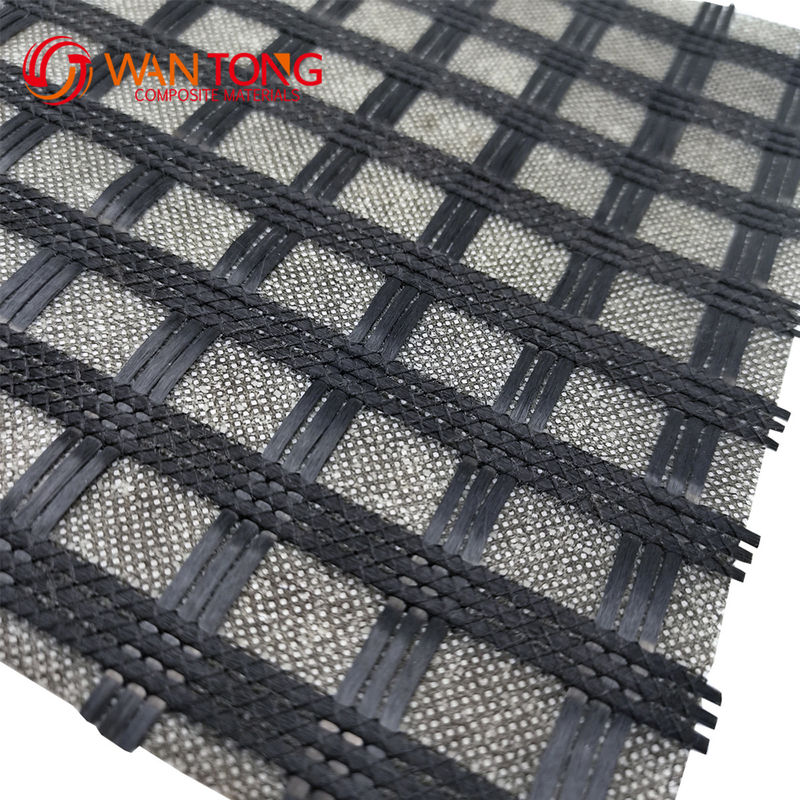

Fiberglass geogrid is a kind of new favorable earthwork base material to strengthen the road surface and roadbed. This product is made by weaving and covering fiberglass filament. It is featured by high vertical and horizontal tensile strength, low unit extension, high favorable property of alkali resistance and aging resistance.

Philippines Fiberglass Geogrid Composite Geotextile Pavement Geogrid for Garage Shed 1

Philippines Fiberglass Geogrid Composite Geotextile Pavement Geogrid for Garage Shed 2

Product Function

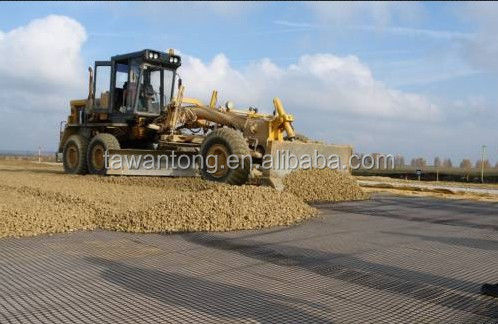

1. Maintenance of old asphalt road reinforcement of asphalt pavement.
2. Converting old cement concrete road into composite road.
3. Restraining reflection cracking caused by block shrinkage.
4. Preventing and controlling the cracking caused by new and old combination and uneven settlement.
5. Road extension.
6. Reinforcement of soft soil foundation and overall strength of roadbed.

Philippines Fiberglass Geogrid Composite Geotextile Pavement Geogrid for Garage Shed 3

Philippines Fiberglass Geogrid Composite Geotextile Pavement Geogrid for Garage Shed 4

Specification

Specification

Property		Test Method	TGSB 30-30	TGSB 40-40	TGSB 50-50	TGSB 60-60	TGSB 70-70	TGSB 80-80	TGSB 90-90	TGSB 100-100	TGSB 120-120	TGSB 130-130
Ultimate Tensile Strength(1)(Kn/m)	MD	EN ISO 10139	30	40	50	60	70	80	90	100	120	130
Ultimate Tensile Strength(1)(Kn/m)	CD		30	40	50	60	70	80	90	100	120	130
Elongation at Maximum Load(%)	MD		3
Elongation at Maximum Load(%)	CD		3
Approximate Mesh Size(mm)			12.712.7 25.425.4 40*40
Roll Width(m)			1-6
Roll Length(m)			50-200

aterial Properties	Unit				Test Method
Unit Weight	g/m2	270+/-10	520+/-20	550+/-20	ASTM D-5261
Aperture Size	mm	25.4x25.4 40x40			Measured
Open Area of Grid	%	>80			CWO 22125
Tensile Strength (MD)	KN/m	50	100	120	ASTM D-6637
Tensile Strength (CMD)	KN/m	50	100	120	ASTM D-6637
Elongation at Break	%	<5			ASTM D-6637
Shrinkage @ 375° F for 15 min	%	<1
Melting Point	° C	255			ASTM D-276
Roll Size	m	2x100m,2.5x100m,3.95x100m,5x100m
