Product Details:
|
| Type: | Geomembranes | Warranty: | 3 Years |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Project Solution Capability: | Graphic Design, 3D Model Design |
| Application: | Outdoor, Pond | Design Style: | Modern |
| Color: | Customized | Thickness: | 2mm |
| Surface: | Smooth Face | Name: | LLDPE LDPE 2mm Hdpe Geomembrane For Dam Liner Landfill Mining |
| Keywords: | Hdpe Geomembrane,2mm Hdpe Geomembrane Price,2mm Hdpe Geomembrane | Standard: | ASTM GRI-GM13 |
| Raw Material: | HDPE LDPE LLDPE PVC PE | Function: | Waterproof Protection |

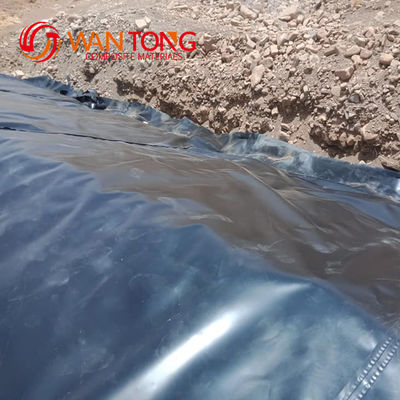

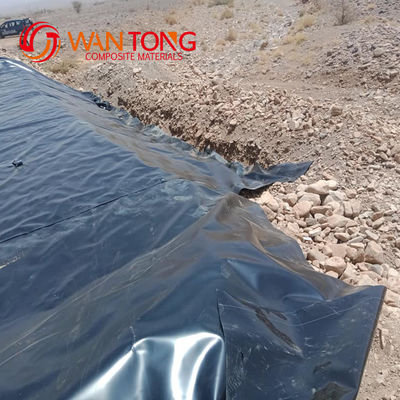

LLDPE LDPE 2mm Hdpe Geomembrane for Dam Liner Landfill Mining Water Reservoir Liner
Geomembrane is made from high grade polyethylene raw material ,with carbon black ,antioxidant, anti-aging and UV resistance component.
Application industry or engineering & usage:
1. Environmental protection
2. Water conservancy
3. municipal engineering
4. garden
5. petrochemicals
6. mining
7. traffic facilities
8. agriculture
9. fish farm area
10. seepage,corrosion,leaks control & reinforcement for other facility,leachate collextion
11. temporary container structure,prefabrication of special parts.
| Property | Value | ||||||
| 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm | |
| Density G/CM3 | 0.94 | ||||||
| Tensile properties |
|
|
|
|
|
|
|
| Strength at yield, N/mm | 11 | 15 | 18 | 22 | 29 | 37 | 44 |
| Break at yield, N/mm | 20 | 27 | 33 | 40 | 53 | 67 | 80 |
| Elongation at yield, % | 12 | ||||||
| Elongation at break, % | 700 | ||||||
| Right angle tear strength, N | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
| Puncture strength, N | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| Stress crack resistance using notched constant tensile load, H | 300 | ||||||
| Carbon Black Content of a % | 2.0-3.0 | ||||||
| Standard OIT,MIN; | 100 | ||||||
| Pressure OIT,MIN | 400 | ||||||
