Product Details:
|
| Type: | Geomembranes | Warranty: | 1 Year |
|---|---|---|---|
| After-sale Service: | Online Technical Support, Onsite Installation, Onsite Training | Project Solution Capability: | Graphic Design, 3D Model Design, Total Solution For Projects |
| Application: | Warehouse, Concrete Embedment | Design Style: | Traditional |
| Surface Width: | 10cm | Production Method: | Extrusion |
| Height Of The Profile: | 4cm | Raw Material: | 100% Virgin Hdpe |
| Usage: | HDPE /LLDPE Geomembrane | Length /pc: | 3m Or Customerized |
| Color: | Black (UV Resistant) | Product Name: | HDPE Geolock E Polylock For Concrete Embedment Geomembrane Attachment |
| Keyword: | E Lock,Geolock |

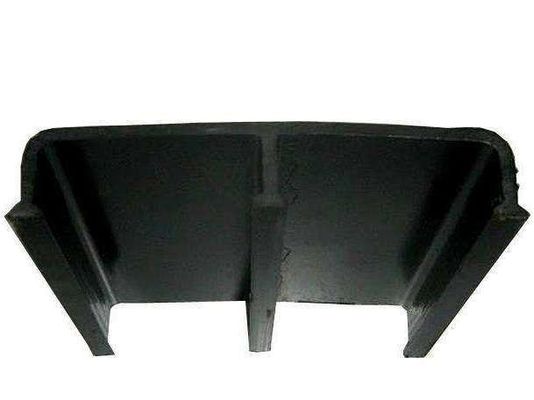

HDPE geolock s used for HDPE geomembrane attachment in construction. It is an extruded HDPE concrete emebedement strip with an E profile shape. The smooth surface with width 15cm or 10cm is for welding the polyethylene sheets while the 3-4cm height fingers are used to insert the web concrete to get locked-in and fix the joint with geomembrane to make a complete water-proof banking. It is also called E-lock or polylock. We produce 3 models of the geomembrane attaching use HDPE geolock by 100% virgin resins.OEM design /production is welcome.
Chemiecal Resistance : excellen
RAW MATERIAL : HIGH DENSITY POLYETHYLENE
MELTING POINT : 135C
DENSITY : 0.951g/cube cm
TENSILE STRENGTH AT TEAR : 25Mpa
TENSILE STRENGTH AT BREAK : 20Mpa
ELONGATION RATE AT BREAK : 800%
Standard length: 3meters
Width : 15cm
Anchor finger length : 3cm
Chemiecal Resistance : excellent
RAW MATERIAL : HIGH DENSITY POLYETHYLENE
MELTING POINT : 135C
DENSITY : 0.951g/cube cm
TENSILE STRENGTH AT TEAR : 25Mpa
TENSILE STRENGTH AT BREAK : 20Mpa
ELONGATION RATE AT BREAK : 700%
DENSITY : 0.951g/cube cm
TENSILE STRENGTH AT TEAR : 25Mpa
TENSILE STRENGTH AT BREAK : 20Mpa
ELONGATION RATE AT BREAK : 700%
Width: 14cm
Anchor finger legnth: 3.3cm
Length per pc : 3m or customerized
We have passed ISO 9001, SGS and CE Certificate, etc.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Egypt, India, Pakistan, Canada, New Zealand and other countries. We also welcome OEM and ODM orders.
