Product Details:
|
| Type: | Geomembranes | Warranty: | NONE |
|---|---|---|---|
| After-sale Service: | NONE | Project Solution Capability: | NONE |
| Application: | Outdoor, Fish Farm | Design Style: | Chinese |
| Color: | Required | Length: | 50m/roll |
| Thickness: | 0.5mm-3mm | Width: | 2m-6m |
| Name: | Geomembrane Landfill Liners For Waste Containment | Standard: | ASTM GRI-GM13 |
| Product Name: | Geomembrane Landfill Liners For Waste Containment | Keyword: | Hdpe Geomembrane Liner 2mm Hdpe Geomembrane Geomembrane Liner |
| Port: | Any Port Of China |

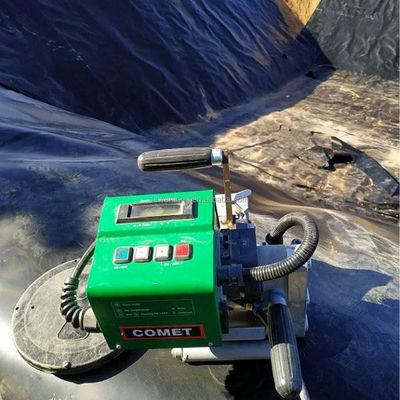

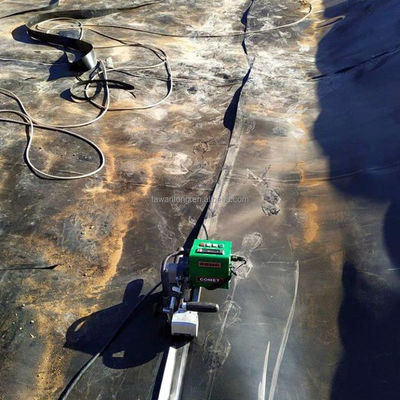

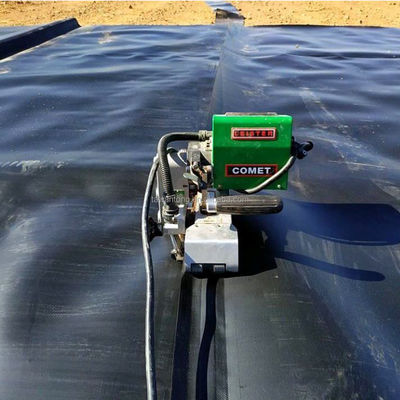

1800W welding machine weld the thickness more than 1.5mm HDPE geomembrane
Product Introduction
High Density Polyethylene (HDPE) is the high density version of PE plastic and is harder and denser than the LDPE, but is less ductile, and lighter than water. Climax HDPE Film / Sheet / Liner / Geomembrane has proved to be a boon especially for developing countries like India by playing an important role to prevent the air and groundwater pollution. The best thing is that it can be easily moulded and welded together and the use of UV Stabilizers improves its weather resistance. High Density Polyethylene Geomembrane lives up to the expectations which are demanded in today's world of environmental engineering. Climax HDPE's prime motive is to keep the Nature clean.
Product Function
1. Complete variety of specifications of width and thickness. Thickness:
2. 0.3-2.5mm/Width: 2-8m .
3. Excellent environmental stress resistant cracking performance.
4. Excellent performance of chemical erosion resistance.
5. Big scope of application temperature and long service life .
6. Applied in landfill waste site, sewage and filth treatment site, tailings depot and underground construction project
| Property | Value | ||||||
| 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm | |
| Density G/CM3 | 0.939 | ||||||
| Tensile properties |
|
|
|
|
|
|
|
| Strength at yield, N/mm | 11 | 15 | 18 | 22 | 29 | 37 | 44 |
| Break at yield, N/mm | 20 | 27 | 33 | 40 | 53 | 67 | 80 |
| Elongation at yield, % | 12 | ||||||
| Elongation at break, % | 700 | ||||||
| Right angle tear strength, N | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
| Puncture strength, N | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| Stress crack resistance using notched constant tensile load, H | 300 | ||||||
| Carbon Black Content of a % | 2.0-3.0 | ||||||
| Standard OIT,MIN; | 100 | ||||||
| Pressure OIT,MIN | 400 | ||||||
| Baking 90D later, Reserved standard OIT %; or | 55 | ||||||
| Baking 90D later, Reserved Pressure OIT% | 80 | ||||||
| Irradiate with UVA after 1600H,Reserved Standard OIT%;or | 50 | ||||||
| Irradiate with UVA after 1600H,Reserved pressure OIT% | 50 | ||||||
| ’-70°C Embrittlement of low-temperature impact | Passed | ||||||
| coefficient of permeability of water steam G.CM/(CM2.S.PA) | ≤1.0*10-13 | ||||||
| Dimensional Stability (%) | ±2 | ||||||
we have obtained ISO9001 certificate SGS certificate and CE certificate. Our products are widely applied in many fields, such as road, highway, airway, coal mine, water and soil conservation, water conservancy and basic construction.
Taian Wantong Composite Material Co.,Ltd , established in 2015, is a professional manufacturer engaged in the research, development, production, sale and service of geogrid,geotextile, geomembrane, geocell and nonwoven fabric.
We are located in Taian city with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as South Africa, Australia, Mexico, Philippines, France, Indonesia, Fiji and other countries. We also welcome OEM and ODM orders.
In recent years, our company has introduced a series of advanced equipment including 40 production lines for various kinds of geosynthetics products.Such as 28 geogrid production lines,2 geotextile production lines, 2 geomembrane production lines,1 geocell producttion lines, 2 nonwoven fabric roll production lines and 10 other new composite material production lines.
We are willing to supply good quality products and good service to satisfy customer's need.
