Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m

Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m
Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m

Large Image :  Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m

Product Details:
Place of Origin: Shandong, China
Brand Name: Wan Tong
Model Number: TGDG
Payment & Shipping Terms:
Minimum Order Quantity: 5000 square meters
Price: $0.99/square meters 5000-14999 square meters
Packaging Details: 190kN 200kN 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement wtih low factory price
Supply Ability: 1000000 Square Meter/Square Meters per Day

Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m

Description
Type: Geogrids Warranty: 2 Years
After-sale Service: Online Technical Support Project Solution Capability: Graphic Design
Application: Apartment, Soft Soil Reinforcement Design Style: Minimalist
Product Name: PP HDPE Uniaxial Geogrid For Retaining Wall And Road Reinforcement Raw Material: HDPE
Certificate: CE /ISO9001 Length: 50m
Width: 1m Color: Black
MESH SIZE: 46cm Tensile Strength: 50KN
Keywords: Hdpe Uniaxial Geogrid,plastic Geogrid,retaining Wall Geogrid Port: Qingdao Port/Shanghai Port

190kN 200kN 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement wtih low factory price



Product Description



Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m 0



PP or HDPE Uniaxial geogrid is expecially designed for soil reinforcement.it is sheet extruded,punched,heated and stretched from polypropylene or polyethylene ,it has high tensile strength,excellent interlock capacity and deformation.

Detailed Images



Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m 1Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m 2

Product Function

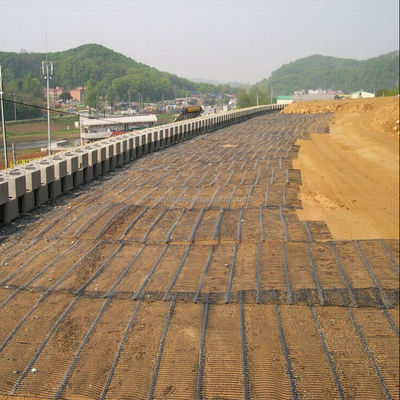

1. Soft foundation reinforcing for highway, railway

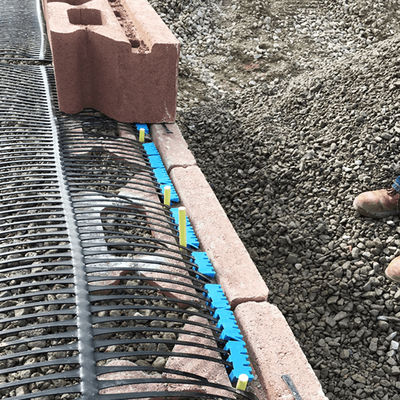

2. Reinforcing for retaining wall, dam

Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m 3

Specification

Item
TGDG 35
TGDG 50
TGDG 80
TGDG 110
TGDG 150
TGDG 180
TGDG 200
TGDG 260
TGDG 320
Vertical Tensile Strength (KN/m) ≥
35
50
80
110
150
180
200
260
320
Elongation ration (%) ≤
10
Tensile Strength at 2% elongation (KN/m) ≥
10
12
26
32
45
55
70
90
110
Tensile Strength at 5% elongation (KN/m) ≥
22
28
48
66
90
110
120
180
210
Length (m)
50-100
Width (m)
3



Company Information
Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m 4Taian Wantong Composite Material Co.,LTD is specialized in the research,development,production and sales of geosynthetic materials, plastic products.Our Company is devoted to geosynthetic material and plastic research, development and application.
Our company is in strict accordance with national standards and related standards. We have advanced detection instruments. Our company passed ISO9001 and other quality system authentication. We also been assessed by SGS and got their certificate.
Our company provides before-sales, in-sales and after-sales services. We wish to cooperate sincerely with friends at home and abroad, paint the grand blueprint and create brilliance together.
Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m 5
Related Products

   Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m 6  Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m 7



Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m 8   Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m 9

Certifications

Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m 10We have passed ISO 9001, SGS and CE Certificate, etc.





Packaging& Shipping

 Low Black 220kN PP HDPE uniaxial geogrid for retaining wall and road reinforcement 50m 11
