Product Details:
|
| Warranty: | 1 Year | After-sale Service: | Online Technical Support |
|---|---|---|---|
| Project Solution Capability: | Graphic Design | Application: | Outdoor, Soil Reinforcement/embankment/landfill Seperation |
| Design Style: | Contemporary | Material: | Polyester/polypropylene |
| Color: | White/black | Width: | 5.2m |
| Length: | 100m | Package: | PP Woven Fabric |
| Tensile Strength: | 100kn | Product Name: | 150-50kn Pet High Strength Woven Geotextile Fabric |
| Keyword: | Woven Geotextile High Strength Geotextile Pet Woven Geotextile | Certificate: | CE/ISO |

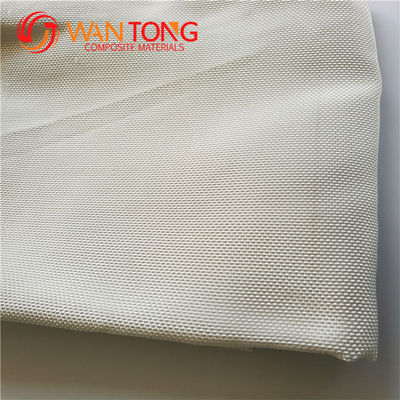

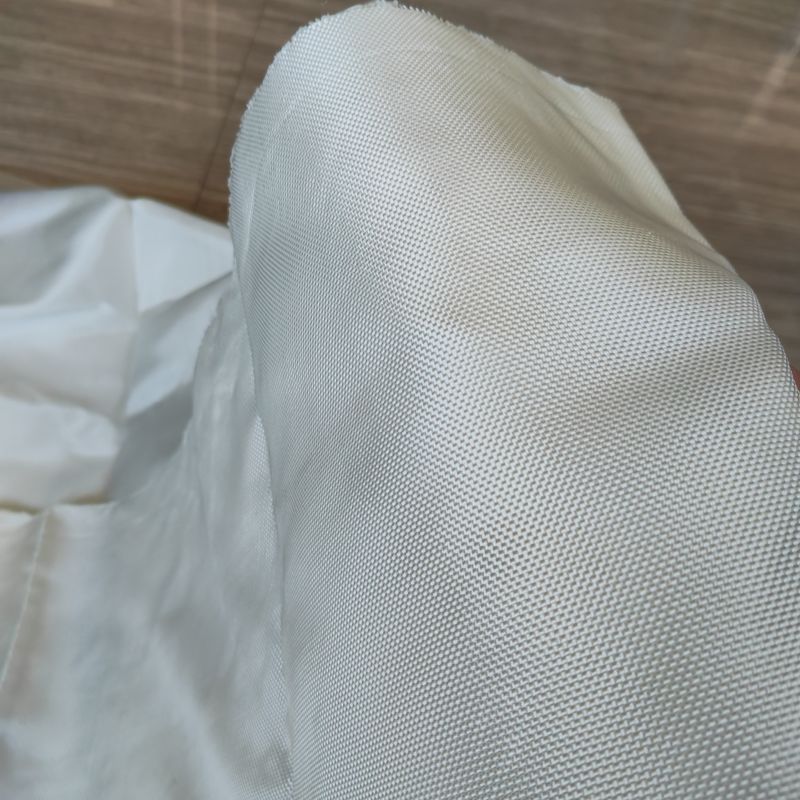

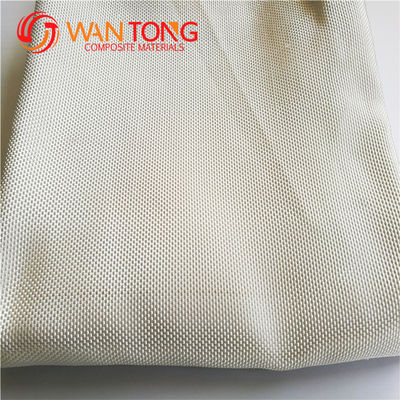

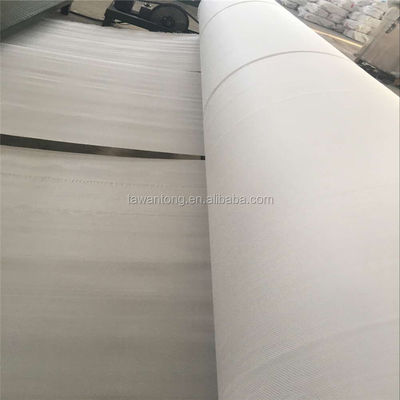

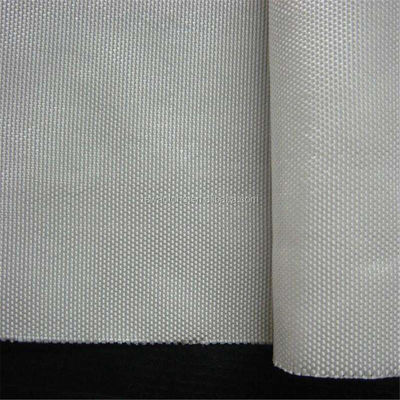

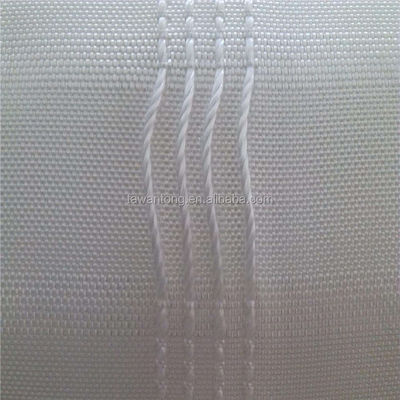

150-50kn Pet High Strength Woven Geotextile Fabric
PET Woven Geotextile is interwoven by high tenacity PET filament yarn into a dimensionally stable network. The inherent characteristics of Polyester-high tensile strength and modulus,low elongation, low creep and high long-term design strength makes the good ideal for soil reinforcement application. The fabric develops excellent frictional interaction with a wide variety of soil and granular materials.
Feature
• High tensile strength and modulus ,low elongation, low creep and high long-term design strength
• Ease of Construction
• Cost effective
• Creep resistance
• Consistency
• Less differential settlement
| Property | Unit | PET100-50 | PET300-50 | PET500-50 | PET600-50 | PET1200-50 |
|---|---|---|---|---|---|---|
| Ultimate Tensile Strength MD | KN/m | 100 | 300 | 500 | 600 | 1200 |
| Ultimate Tensile Strength CD | KN/m | 50 | 50 | 50 | 50 | 50 |
| Strain at short term strength | % | 10 | 12 | 12 | 12 | 12 |
| Elongation | % | 30 | 30 | 30 | 30 | 30 |
| Apparent Opening Size | mm | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
| UV resistance ( Retained 500 Hours) | % | 70 | 70 | 70 | 70 | 70 |
| Width | m | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 |
| Height | m | 100 | 100 | 100 | 100 | 75 |
| Roll weight | Kg | 140 | 320 | 480 | 580 | 810 |
We have passed ISO 9001, SGS and CE Certificate, etc.
