Product Details:
|
| Type: | Geogrids | Warranty: | 2 Years |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Project Solution Capability: | Total Solution For Projects |
| Application: | Outdoor, Soft Soil Reinforcement | Design Style: | Industrial |
| Product Name: | Bitumen Coating Road Paving Material Fiberglass Geogrid | Keyword: | Fiberglass Geogrid,fiberglass Mesh Geogrid,glass Fiber Geogrid |
| Raw Material: | Fibergalss | Certificate: | CE /ISO9001 |
| Color: | Black | Tensile Strength: | 50Kn/m |
| Width: | 5m | Length: | 50-200m |
| MESH SIZE: | 12.7*12.7mm. 25.4*25.4mm | Port: | Qingdao Port |
Bitumen Coating Road Paving Material Fiberglass Geogrid Asphalt Reinforcement Fiberglass Geogrid Factory Price
Product Introduction

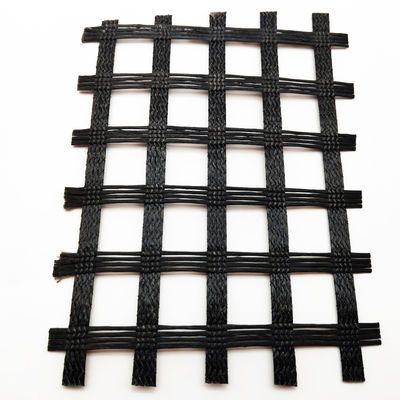

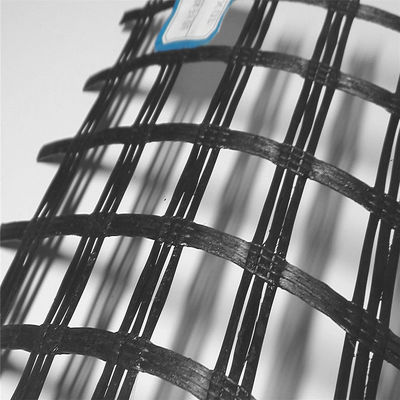

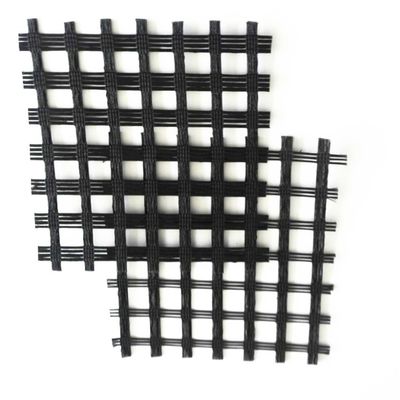

Fiberglass geogrid is a kind of new favorable earthwork base material to strengthen the road surface and roadbed. This product is made by weaving and covering fiberglass filament. It is featured by high vertical and horizontal tensile strength, low unit extension, high favorable property of alkali resistance and aging resistance.
Product Function

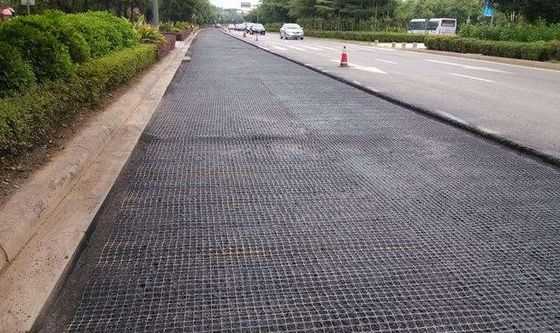

1. Maintenance of old asphalt road reinforcement of asphalt pavement.
2. Converting old cement concrete road into composite road.
3. Restraining reflection cracking caused by block shrinkage.
4. Preventing and controlling the cracking caused by new and old combination and uneven settlement.
5. Road extension.
6. Reinforcement of soft soil foundation and overall strength of roadbed.
Specification
| Property | Test Method | TGSB 30-30 | TGSB 40-40 | TGSB 50-50 | TGSB 60-60 | TGSB 70-70 | TGSB 80-80 | TGSB 90-90 | TGSB 100-100 | TGSB 120-120 | TGSB 130-130 | |
| Ultimate Tensile Strength(1)(Kn/m) | MD | EN ISO 10139 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 130 |
| CD | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 130 | ||
| Elongation at Maximum Load(%) | MD | 3 | ||||||||||
| CD | 3 | |||||||||||
| Approximate Mesh Size(mm) | 12.7*12.7 25.4*25.4 40*40 | |||||||||||
| Roll Width(m) |
| 1-6 | ||||||||||
| Roll Length(m) |
| 50-200 | ||||||||||
We are willing to supply good quality products and good service to satisfy customer's need!
We have passed ISO 9001, SGS and CE Certificate, etc.
