Product Details:
|
| Application: | Fiberglass Mesh Cloth | Weight: | 200g~800g, 200g~800g |
|---|---|---|---|
| Surface Treatment: | Silicon Coated | Width: | 100cm |
| Weave Type: | Plain Woven | Yarn Type: | E-glass |
| Alkali Content: | Alkali Free | Standing Temperature: | -196℃~300℃ |
| Yarn: | 200~2400 Tex | Density (Warp): | 16~50en Ds/10cm |
| Density (Weft): | 18~50en Ds/10cm | Width (cm): | 100/127 |
| Tensile Strength (Warp): | ≥1300N/50mm | Tensile Strength (Weft): | ≥1100N/50mm |
| Package: | PE Membrane And Carton | Color: | Silver |
| Port: | Any Port In China |

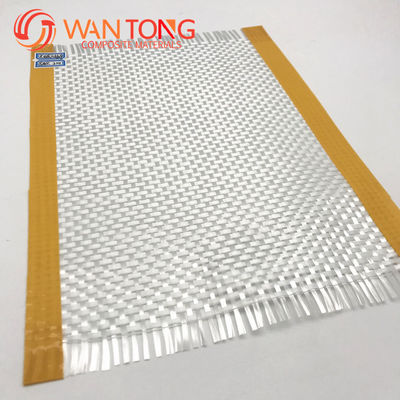

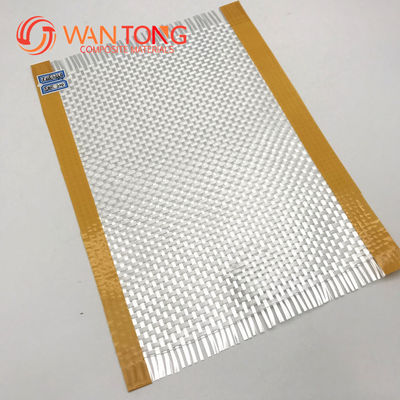

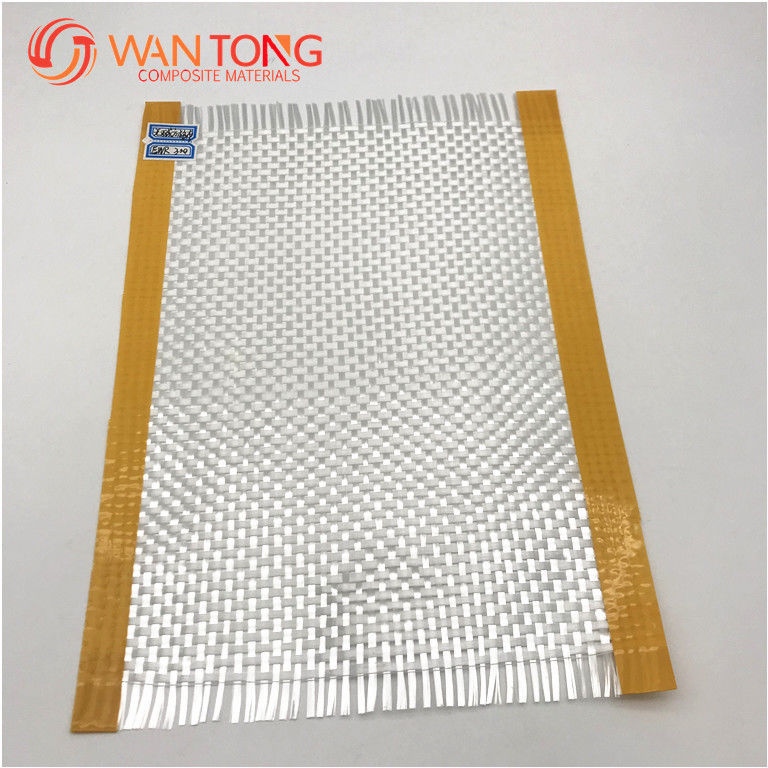

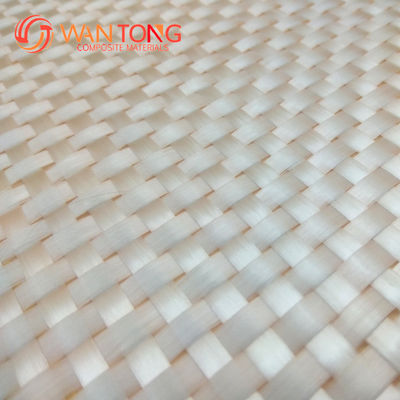

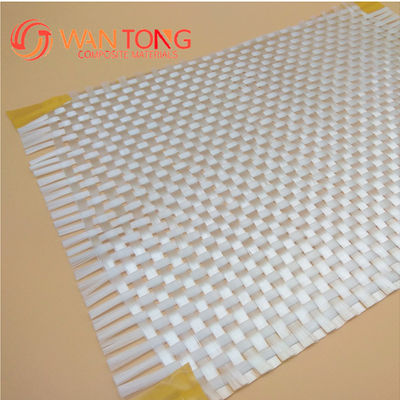

The description of taishan ewr fiberglass woven roving for building and board
EWR woven roving are bidirectional fabric made by direct rovings in plain weavn pattern. The feature as follow: Consistent thickness and excellent surface treatment, Rapid impregnating and good compatibility with resin, Uniform tension, High dimensional stability and making handing easy, Good mechanical properties and high strength of parts.
The Application of taishan ewr fiberglass woven roving for building and board
The Specification of taishan ewr fiberglass woven roving for building and board
| Item | Yarn (Tex) | Density (en ds/10cm) | Mass (g/m2) | Width (cm) | Tensile strength (N/50cm) | ||
| Warp | Weft | Warp | Weft | ||||
| EWR200 | 200 | 50 | 50 | 200g±16g | 90/100 | ≥1300 | ≥1100 |
| EWR400 | 600 | 35 | 32 | 400g±32g | 100/127 | ≥2500 | ≥2200 |
| EWR570 | 1150 | 26 | 24 | 570g±45g | 100/127 | ≥3600 | ≥3300 |
| EWR600 | 1200 | 26 | 24 | 600g±48g | 100/127 | ≥4000 | ≥3850 |
| EWR800 | 2400 | 18 | 16 | 800g±64g | 100/127 | ≥4600 | ≥4400 |
| Note | Nonstandard product is available upon customer's request. This data is for reference only. | ||||||
The Workshop of taishan ewr fiberglass woven roving for building and board
Product Pakage: PE bag
Out package: Carboard box or plastic woven bag.
Roll Weight: 20Kg~85Kg
Storage Temperature: 5 °C~35°C
Storage Humidity: 35%~65%
Taian Wantong Composite Material Co.,LTD is specialized in the research,development,production and sales of geosynthetic materials, fiberglass products.Our Company is devoted to geosynthetic material and fiberglass products research, development and application. We have passed ISO 9001, SGS and CE Certificate, etc.
