Product Details:
|
| Warranty: | NONE | After-sale Service: | Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation | Application: | Road, Roof Water Drainage |
| Design Style: | Chinese | Type: | Other Earthwork Products |
| Product Name: | Drainage Board | Color: | BLACK, White , Green , Blue, Etc. |
| Material: | HDPE PP | Height: | 8mm-40mm |
| Usage: | Draingae System | Length: | 15m |
| Width: | 2-3m | Certifications: | CE/ISO9001/ISO14001 |
| Port: | Any |

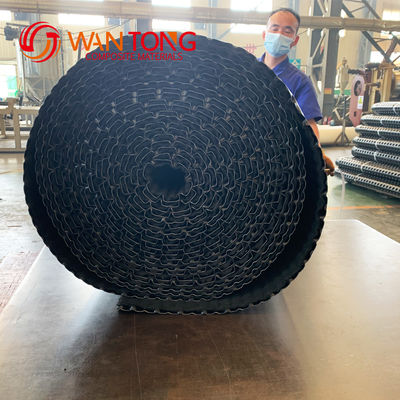

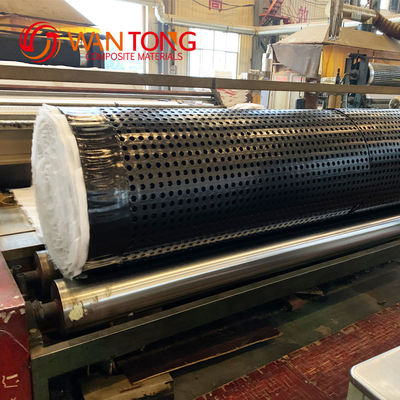

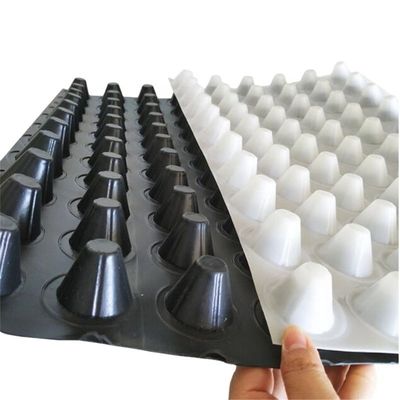

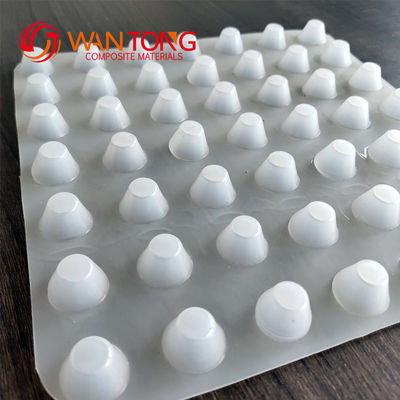

drainage board is manufactured from High Density Polyethylene resins. Produced by extruding plastic sheet into dimple shape.These dimples,in spatial structure with certain height. Can resist long-term high pressure without deformation. On the top of the dimples, there is filtration geotextile to make sure the drainage channel ruing well without any block for any articles. For example,filling particles or concrete.
1.the board is of low-cost;
2.high efficiency; durable;
3.chemical resistance;
4.resistance to puncture of plant roots;
5.diverse application;
6.simple installation and quality guaranteed.

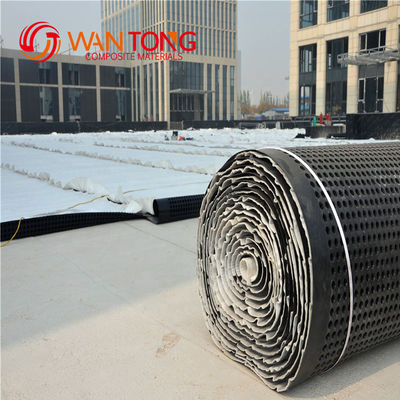

1. Landscape:Landscape engineering: garage top greening, roof garden, football field, golf course, beach project;
2. Construction: Construction engineering : upper or bottom layer of building foundation, basement wall, bedding filtration and heat insulation;
3. Multiple Engineering: Railway, bridge, tunnel, underground's seepage, strengthening, reinforcement etc;
4. Traffic Engineering: Moto way, railway basement, dam and slope.
| Item | Material | Height (mm) | Compressive Strength (≥KMPa) | Elongation (≥%) | Tensile Strength (≥KMPa) | Longitudinal Flow Capacity (cm2/s) | Puncture Strength (N) |
| WTPSB8 | HDPE | 8 | 270 | 25 | 300 | 5 | 300 |
| WTPSB10 | HDPE | 10 | 300 | 25 | 300 | 5.6 | 300 |
| WTPSB12 | HDPE | 12 | 300 | 25 | 300 | 5.9 | 300 |
| WTPSB16 | HDPE | 16 | 300 | 25 | 300 | 6.2 | 300 |
| WTPSB20 | HDPE | 20 | 300 | 40 | 450 | 1 | 330 |
| Standard Packaging Roll(Width*Length)(m) | 2m/ 3m * 15m/20m | ||||||
| Remark: Special spec and sizes can be produced according to customers requirement. | |||||||
Tai'an Wantong Composite Material Co., Ltd. established in 2 0 1 5, is a professional manufacturer engaged in the research, development, production, sale and service of geogrid, geotextile, geomembrane, geocell, geosynthetic clay liner, geomat, geonet,drainage board,composite drainage net, geobag,non woven fabric, tree watering bag and fiberglass chopped strand mat.
we have obtained I S O 9 0 0 1 certificate. Our products are widely applied in many fields, such as road, highway, airway, coal mine, water and soil conservation, water conservancy and basic construction.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Vietnam,Thailand, Indonesia, Ukraine, Russia, Colombia, Canada, Georgia, Romania, and Yemen We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application,
you can talk to our customer service center about your sourcing requirements
