Product Details:
Place of Origin: Shandong, China
Brand Name: WanTong
Model Number: PSW
Payment & Shipping Terms:
Minimum Order Quantity: 500 square meters
Price: $1.50 - $4.50/square meters
Packaging Details: pp woven fabric <br>3d Net Is a Turf Reinforcement Mat (trm) Three-Dimensional Composite Drainage Nets
Supply Ability: 1000000 Square Meter/Square Meters per Month

3D Net for Turf Reinforcement Mat TRM CE/ISO9001/ISO14001 Certified and Long-Lasting

Description
Type: Other Earthwork Products Material: PP Or PET
Length: 50m Width: Normal 2m
Height: 5cm Usage: Ecological Slope Protection System
Certifications: CE/ISO9001/ISO14001 Color: Requirements
Keyword: Drainage Net,Three-Dimensional Composite Drainage Nets Product Name: Turf Reinforcement Mat (trm) Three-Dimensional Composite Drainage Nets
Application: Parking Lot Grass Reinforcing, Landfill Port: Qingdao Port

Description

3d Net Is a Turf Reinforcement Mat (trm) Three-Dimensional Composite Drainage Nets

Three Dimension Drainage Net (or being named three civil drainage board, tunnel drainage board, drainage board) which has the characteristic of good water transmission, against high pressure and microorganism, anti-UV. It can instead of the traditional gravel sand. It is used for the drainage of the rubbish filling site, road base and the inside of the tunnel which is consisted with plastic net and permeated geotextile both sides.

Specification
Drainage netwrok core
unit
Unit weight
g/m2
750
1000
1300
1600
Thickness
mm
5.0
6.0
7.0
7.6
Hydraulic conductivity
m/s
K x 10 -4
K x 10 -4
K x 10 -4
K x 10 -4
Elongation
%
<50
<50
<50
<50
Tensile strength ( core network)
KN/m
8
10
12
14
Geotextile weight
g/m2
200-200
200-200
300-300
400-400

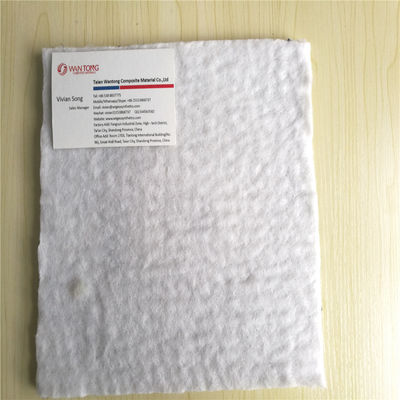

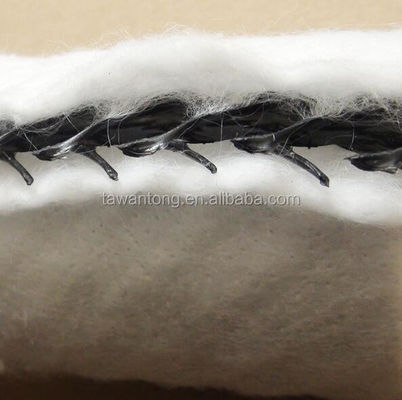

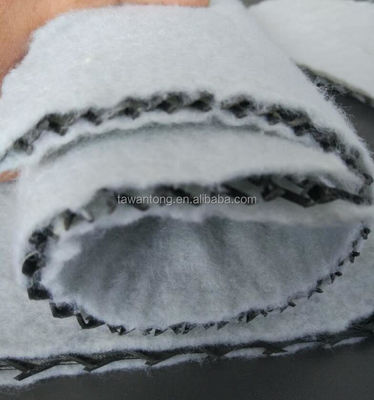

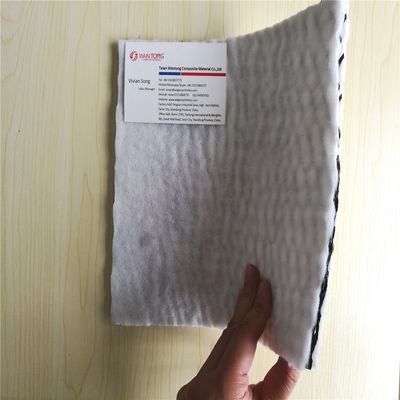

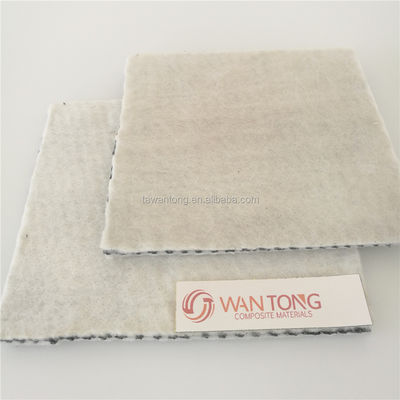

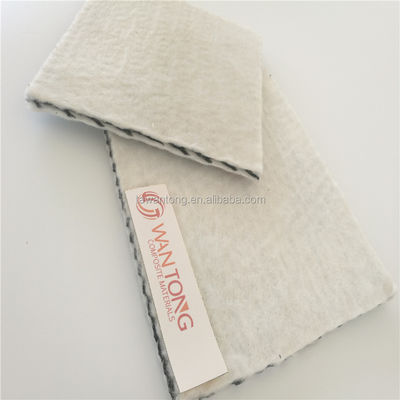

Detailed Image
3D Net for Turf Reinforcement Mat TRM CE/ISO9001/ISO14001 Certified and Long-Lasting 0
3D Net for Turf Reinforcement Mat TRM CE/ISO9001/ISO14001 Certified and Long-Lasting 1
3D Net for Turf Reinforcement Mat TRM CE/ISO9001/ISO14001 Certified and Long-Lasting 2
