50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures

Certification
China Tai\'an Wantong Composite Material Co., Ltd. certification
China Tai\'an Wantong Composite Material Co., Ltd. certification
I'm Online Chat Now

50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures

50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures
50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures

Large Image :  50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures

Product Details:
Place of Origin: Shandong, China
Brand Name: Wan Tong
Model Number: TGDG
Payment & Shipping Terms:
Minimum Order Quantity: 5000 square meters
Price: $0.99/square meters 5000-14999 square meters
Packaging Details: HDPE/PP Uniaxial Plastic Geogrid Price for Retaining Wall
Supply Ability: 1000000 Square Meter/Square Meters per Day

50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures

Description
Type: Geogrids Warranty: 2 Years
After-sale Service: Online Technical Support Project Solution Capability: Graphic Design
Application: Apartment, Soft Soil Reinforcement Design Style: Minimalist
Product Name: HDPE/PP Uniaxial Plastic Geogrid Price For Retaining Wall Raw Material: HDPE
Certificate: CE /ISO9001 Length: 50m
Width: 1m Color: Black
MESH SIZE: 46cm Tensile Strength: 50KN
Keywords: Hdpe Uniaxial Geogrid,plastic Geogrid,pp Uniaxial Geogrid Port: Qingdao Port/Shanghai Port

HDPE/PP Uniaxial Plastic Geogrid Price for Retaining Wall



Product Description



50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 0



PP or HDPE Uniaxial geogrid is expecially designed for soil reinforcement.it is sheet extruded,punched,heated and stretched from polypropylene or polyethylene ,it has high tensile strength,excellent interlock capacity and deformation.

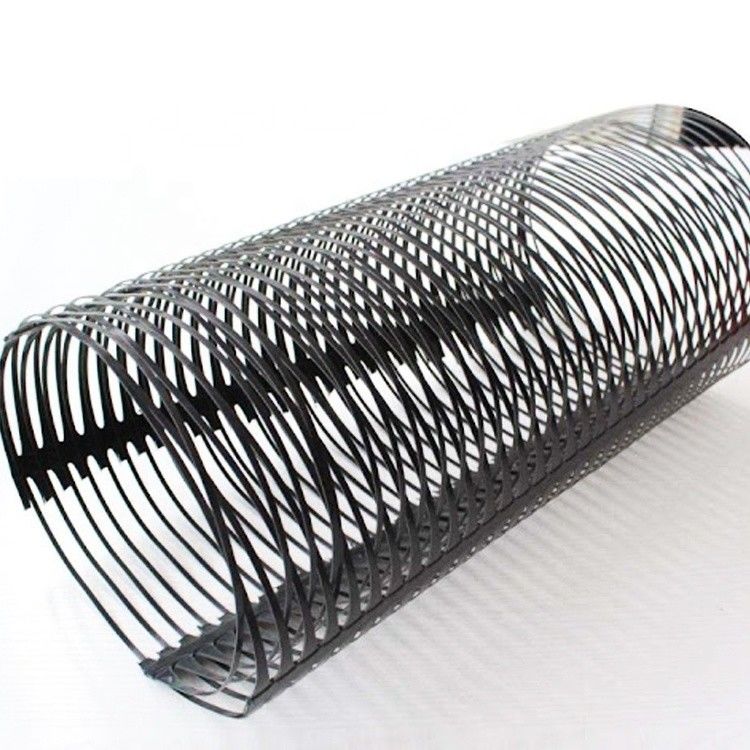

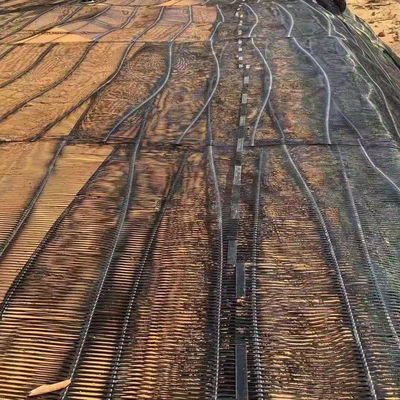

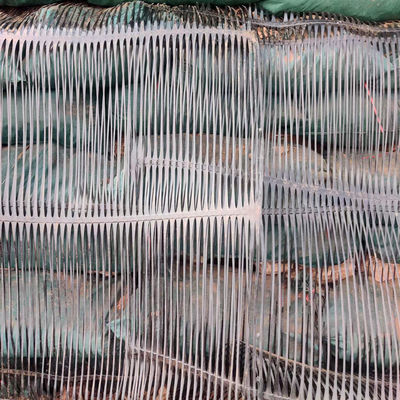

Detailed Images



50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 150m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 2

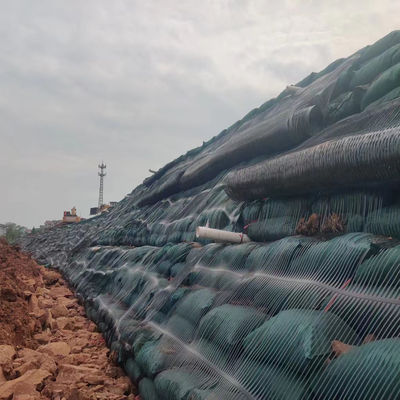

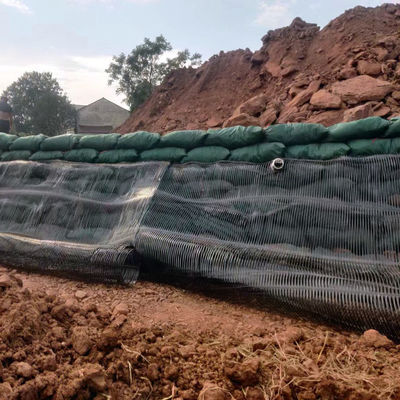

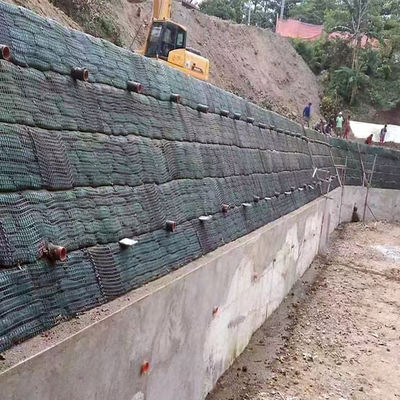

Product Function

1. Soft foundation reinforcing for highway, railway

2. Reinforcing for retaining wall, dam

50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 3

Specification

Item
TGDG 35
TGDG 50
TGDG 80
TGDG 110
TGDG 150
TGDG 180
TGDG 200
TGDG 260
TGDG 320
Vertical Tensile Strength (KN/m) ≥
35
50
80
110
150
180
200
260
320
Elongation ration (%) ≤
10
Tensile Strength at 2% elongation (KN/m) ≥
10
12
26
32
45
55
70
90
110
Tensile Strength at 5% elongation (KN/m) ≥
22
28
48
66
90
110
120
180
210
Length (m)
50-100
Width (m)
3



Company Information
50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 4Taian Wantong Composite Material Co.,LTD is specialized in the research,development,production and sales of geosynthetic materials, plastic products.Our Company is devoted to geosynthetic material and plastic research, development and application.
Our company is in strict accordance with national standards and related standards. We have advanced detection instruments. Our company passed ISO9001 and other quality system authentication. We also been assessed by SGS and got their certificate.
Our company provides before-sales, in-sales and after-sales services. We wish to cooperate sincerely with friends at home and abroad, paint the grand blueprint and create brilliance together.
50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 5
Related Products

   50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 6  50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 7



50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 8   50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 9

Certifications

50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 10We have passed ISO 9001, SGS and CE Certificate, etc.





Packaging& Shipping

 50m Length HDPE/PP Uniaxial Plastic Geogrid for Strengthening Retaining Structures 11
