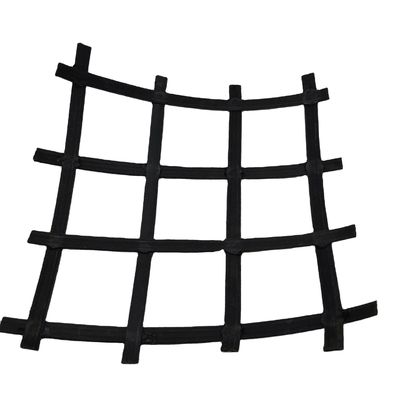

20kn-1200kn Steel Plastic Composite Geogrid for Road Construction and Soil Stabilization

Large Image : 20kn-1200kn Steel Plastic Composite Geogrid for Road Construction and Soil Stabilization

Product Details:

Place of Origin:	Shandong, China
Brand Name:	wantong

Payment & Shipping Terms:

Minimum Order Quantity:	5000 square meters
Price:	$1.30/square meters 5000-29999 square meters
Packaging Details:	Steel Plastic Composite Geogrid for Road Construction Plastic Soil Stabilization Geogrid
Supply Ability:	999999999999999 Square Meter/Square Meters per Day

Contact Now

20kn-1200kn Steel Plastic Composite Geogrid for Road Construction and Soil Stabilization

Description

Type:	Geogrids	Warranty:	NONE
After-sale Service:	Online Technical Support	Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects
Application:	Other, Road Construction	Design Style:	Chinese
Material:	Plastic- Steel	Width:	1-6m
Specification:	20kn-1200kn	Package:	Pack To Roll
HS Code:	3926909090	Color:	Black
MOQ:	1000sqm	Certificate:	CE
Sample:	Freely	Port:	Qingdao

Product Description

The steel plastic composite geogrid uses high tensile steel wire (or other fiber)
specially handled and polyethylene (P.E) with other assistants. Then squeeze it out
and make it become composite high-strength anti-pull belt and the surface has
rough embossing then it is reinforcement earthwork belt. Warp knitting vertically
and horizontally using this single belt and welding the joint using a special welding
technology to molding is reinforcement geogrid.

Specification

Project	TGSG4040	TGSG5050	TGSG6060	TGSG8080	TGSG120120
Two- way Max Tensile strength (kn/m)≥	40	50	60	80	120
Two- way Max enlongation(%)≤	3	3	3	3	3
tensile strength at 1%	31Kn/m	39Kn/m	48Kn/m	63Kn/m	95Kn/m
Tear force of welding point(N)	≥300	≥300	≥300	≥300	≥300
roll size	5.9*50	5.9*50	5.9*50	5.9*50	5.9*50

Packing & Delivery

Roll Size:200m (L) * 6m(W) * 20cm-50cm (D)
Specification: 20KN - 1200KN

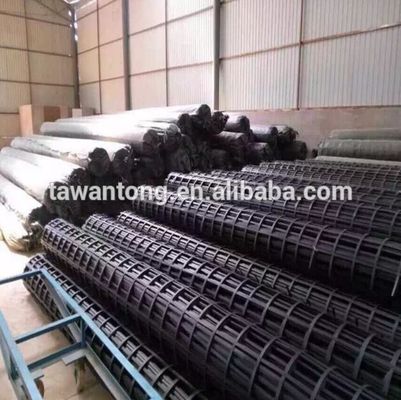

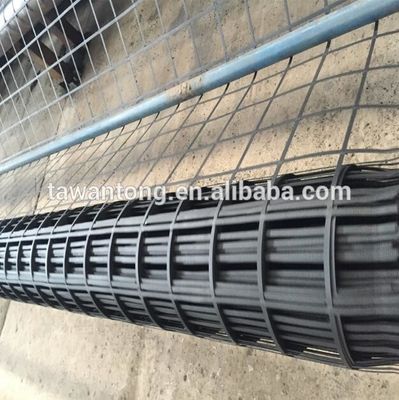

Packaging Details
* Roll width and length can be made to order to meet specific project requirement.
* White fabric bag or black PE bag outside or as required.
* Paper tube can be provided for roll according to specific requirement.
* Delivery period: generally within 15 days.

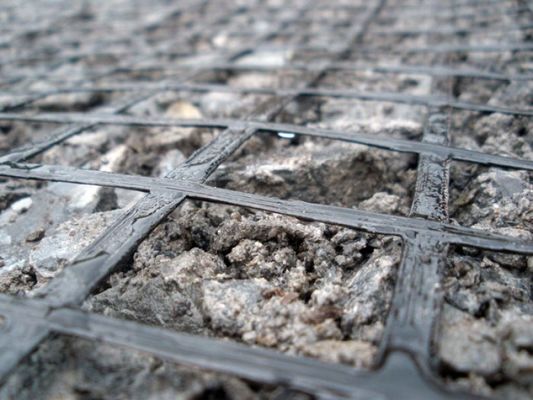

APPLICATION

The products are applied widely in railway, bridge, dock, retaining wall.dam to reinforce
the soft soil and to resist the road surface's crack

PRODUCT FEATURES

1.The intensity is high and the distort is small;
2.The wriggle is small;
3.Anti-corrosive, the life is long, the geogrid take the plastic material as a protector, auxiliary enables it by each kind of
assistant to have the anti aging, the oxidation susceptibility again, but acid proof , alkali, salt and so on adverse
circumstance corrosion. Therefore, the steel modes the earthwork gril to be possible to meet each kind of permanent
work100year above use need, and the performance is superior, the size stability is good;
4.The construction is convenient ,the cycle is quickly short. the cost is low; the steel plastic complex geo grid to lay down,
joining ,the localization to be easy, to be smooth, avoids overlapping crossover, but reduced the project cycle effectively,
saved the building cost of projects by 10%-50%.

Company Profile

Taian Wantong Composite Material Co.,Ltd is located in Taian city, Shandong province, which adjacent to Jinan International Airport and Taian High Speed Rail Station, enjoying convenient in transportation. Our factory is located in the middle of China's most developed transport network, by high speed train only takes 2 hours to reach Beijing and 3 hours to reach Shanghai Taian Wantong Composite Material Co.,Ltd pays attention to customer interests and public interest and uses good faith for the operating principles. We are high-tech enterprises specialized in geotechnical composite materials research, development and production. We are China Geosynthetics Association governing units. We establish a good relationship with many universities and engineering companies. Taian Wantong Composite Material Co.,Ltd has been dedicated in R&D, production, sales and installation services of geosynthetics for many years.Our main products including fiberglass geogrid, warp knitted polyester geogrid, uniaxial plastic geogrid, biaxial plastic geogrid, steel plastic composite geogrid, warp knitted composite geogrid, , geotextile, HDPE geomembrane, LDPE geomembrane, EVA geomembrane, composite geomembrane, fiberglass-polyester paving mat, high-performance polyester cloth , three-dimensional geomat, geonet, geocell, industrial fiber, soft water pipe, geocomposite dreinage systems(GDS),geosynthetic clay Liners, and so on. The products are widely used in highway, railway, airport, wharf, coal mine, water conservancy, electric power, water and soil conservation, circumstance afforestation and fundamental construction, which are got high comments from engineering experts and clients. Through strong company strength, high-quality products and good service for customers, Taian Wantong Composite Material Co., Ltd becomes the leader in China geosynthetics field. We wish to cooperate sincerely with friends at home and abroad, paint the grand blueprint and create brilliance together.

FAQ

1.How about the delivery time?
after 10 days since receipt of 30% T/T deposit
2.What kind of payments does jenor support?
T/T
3.What's are the MOQ?
We can according to your condition to set the MOQ.And we can provide you samples for quality inspection.
4.How to deal with the sample charge?
According to our company policy, the samples are free, we only charge the freight fee.And we will return the freight fee If you
set the order .
5.Can you produce the product according to customers' requirements ?
Sure, we are professional manufacturer, OEM and ODM are both welcome.
