Product Details:
|
| Type: | Geogrids | Warranty: | 3 Years |
|---|---|---|---|
| After-sale Service: | Online Technical Support, Onsite Inspection | Project Solution Capability: | Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation |
| Application: | Other, Driveway | Design Style: | Modern |
| Color: | Black | Certificate: | CE /ISO9001 |
| Width: | 1-6m | Length: | 50m |
| Raw Material: | Polypropylene | Tensile Strength: | 15-60KN |
| MESH SIZE: | 35mm*35mm 60mm*60mm | Name: | Factory Price Polypropylene PP Biaxial Geogrid 15kn--50kn |
| Keywords: | Pp Geogrid,pp Biaxial Geogrid,polypropylene Biaxial Geogrid | Port: | Any Port In China |
Factory Price Polypropylene PP Biaxial Geogrid 15kn--50kn

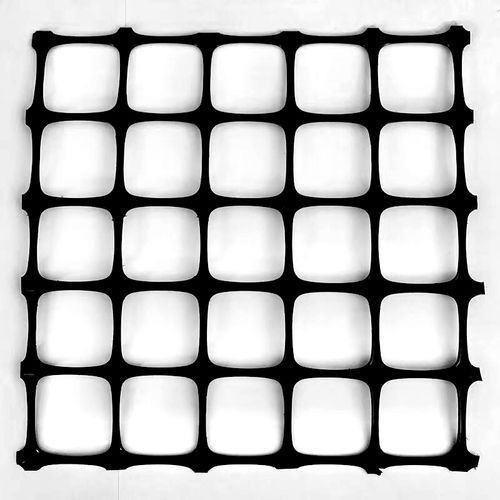

The properties of Biaxial Geogrids, made in Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill.
Factory Price Polypropylene PP Biaxial Geogrid 15kn--50kn
| Property | Test Method | TGSB 15-15 | TGSB 20-20 | TGSB 30-30 | TGSB 40-40 | TGSB 50-50 | TGSB 60-60 | |
| Ultimate Tensile Strength(1)(KN/M) | MD | EN ISO 10139 | 15 | 20 | 30 | 40 | 50 | 60 |
| CD | 15 | 20 | 30 | 40 | 50 | 60 | ||
| Elongation at Maximum Load(%) | MD | 13 | ||||||
| CD | 13 | |||||||
| Tensile Strength at 2% Elongation(KN/M) | MD | 5 | 7.5 | 10.5 | 14 | 18 | 27.5 | |
| CD | 5 | 7.5 | 10.5 | 14 | 18 | 27.5 | ||
| Tensile Strenght at 5% Elongation(KN/M) | MD |
| 7 | 14 | 21 | 28 | 35 | 48 |
| CD | 7 | 14 | 21 | 28 | 35 | 48 | ||
| Minimum Carbon Black | % | ASTM4218 |
| |||||
| Roll Length(M) |
| 100/75/50 | ||||||
| Roll Width(M) |
| 2/3.9/3.95/5/5.9/6 | ||||||
Factory Price Polypropylene PP Biaxial Geogrid 15kn--50kn
Factory Price Polypropylene PP Biaxial Geogrid 15kn--50kn
Factory Price Polypropylene PP Biaxial Geogrid 15kn--50kn
Taian Wantong Composite Material Co.,LTD is specialized in the research,development,production and sales of geosynthetic materials, plastic products.Our Company is devoted to geosynthetic material and plastic research, development and application.We have passed ISO 9001, SGS and CE Certificate, etc.
1. We have our own factory. We can provide what you want in competitive price.
2. Our company provides before-sales, in-sales and after-sales services with heart and soul in engineering construction and products selection.
3. Our company is in strict accordance with national standards and related standards. Our company passed ISO9001 and BV quality system authentication.
4.We have been exporting for 10 years.
We can provide necessary certificates to make customs clearance easier for you.
We know well about container. We can make advice for you to reduce freight without damaging goods.
5.We can provide Certificate of Origin. For Southeast Asia, FORM E and FORM A. For Chile, FORM F. For Africa, C O.
