Product Details:
|
| Type: | Geogrids | Warranty: | 3 Years |
|---|---|---|---|
| After-sale Service: | Online Technical Support, Onsite Inspection | Project Solution Capability: | Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation |
| Application: | Other, Driveway | Design Style: | Modern |
| Color: | Black | Certificate: | CE /ISO9001 |
| Width: | 1-6m | Length: | 50m |
| Raw Material: | Polypropylene | Tensile Strength: | 15-60KN |
| MESH SIZE: | 35mm*35mm 60mm*60mm | Name: | PP Plastic Biaxial Geogrid For Subgrade Stabilization |
| Keywords: | Pp Geogrid,pp Biaxial Geogrid,plastic Geogrid |

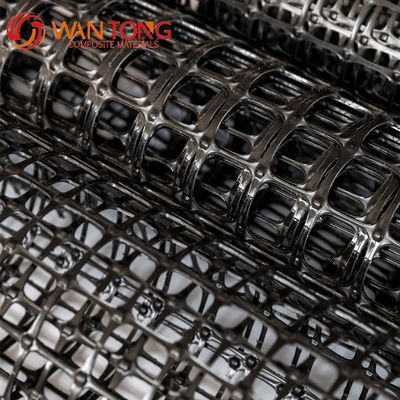

PP Plastic Biaxial Geogrid for Subgrade Stabilization

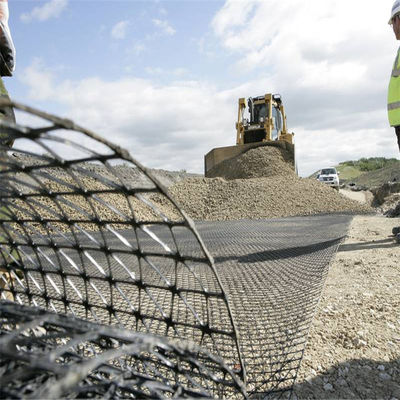

The properties of Biaxial Geogrids, made in Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill.
PP Plastic Biaxial Geogrid for Subgrade Stabilization
| Property | Test Method | TGSB 15-15 | TGSB 20-20 | TGSB 30-30 | TGSB 40-40 | TGSB 50-50 | TGSB 60-60 | |
| Ultimate Tensile Strength(1)(KN/M) | MD | EN ISO 10139 | 15 | 20 | 30 | 40 | 50 | 60 |
| CD | 15 | 20 | 30 | 40 | 50 | 60 | ||
| Elongation at Maximum Load(%) | MD | 13 | ||||||
| CD | 13 | |||||||
| Tensile Strength at 2% Elongation(KN/M) | MD | 5 | 7.5 | 10.5 | 14 | 18 | 27.5 | |
| CD | 5 | 7.5 | 10.5 | 14 | 18 | 27.5 | ||
| Tensile Strenght at 5% Elongation(KN/M) | MD |
| 7 | 14 | 21 | 28 | 35 | 48 |
| CD | 7 | 14 | 21 | 28 | 35 | 48 | ||
| Minimum Carbon Black | % | ASTM4218 |
| |||||
| Roll Length(M) |
| 100/75/50 | ||||||
| Roll Width(M) |
| 2/3.9/3.95/5/5.9/6 | ||||||
PP Plastic Biaxial Geogrid for Subgrade Stabilization
PP Plastic Biaxial Geogrid for Subgrade Stabilization
PP Plastic Biaxial Geogrid for Subgrade Stabilization
Taian Wantong Composite Material Co.,LTD is specialized in the research,development,production and sales of geosynthetic materials, plastic products.Our Company is devoted to geosynthetic material and plastic research, development and application.We have passed ISO 9001, SGS and CE Certificate, etc.
