Polyester Biaxial Geogrid with CE/ISO9001 Certification Mesh Size 25mm*25mm 's Leading

Large Image : Polyester Biaxial Geogrid with CE/ISO9001 Certification Mesh Size 25mm*25mm 's Leading

Product Details:

Place of Origin:	Shandong, China
Brand Name:	WanTong
Model Number:	PET

Payment & Shipping Terms:

Minimum Order Quantity:	10000 square meters
Price:	$1.29/square meters 10000-29999 square meters

Contact Now

Polyester Biaxial Geogrid with CE/ISO9001 Certification Mesh Size 25mm*25mm 's Leading

Description

Type:	Geogrids	Warranty:	5 Years
After-sale Service:	Online Technical Support, Onsite Installation, Onsite Training	Project Solution Capability:	Graphic Design, Total Solution For Projects
Application:	Warehouse, Construction< Road Building	Design Style:	Traditional
Color:	Black	Width:	5m
Length:	100m/roll	Certificate:	CE /ISO9001
Raw Material:	Polyester Coating PVC	Tensile Strength:	100KN/M
Mesh Size:	25mm*25mm	Name:	Manufacturer Polyester Biaxial Geogrid
Keywords:	Geogrid Retaining Wall,geogrid Prices,polyester Geogrid

China Professional Geosynthetics Manufacturer Polyester Biaxial Geogrid Supplier 100-30, 120-30, 150-30

Product Introduction

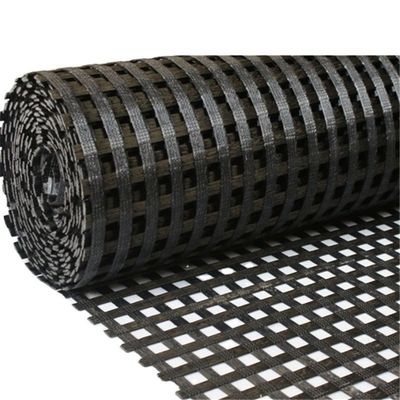

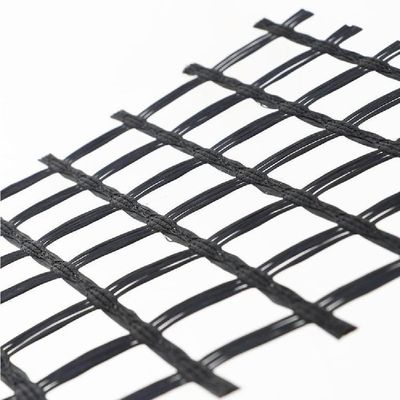

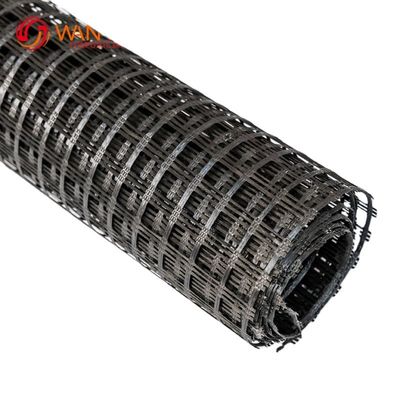

Polyester geogrid known as PET grid is woven by high strength polymer yarns as per desired mesh sizes and strength from 20kn/m to 800kn/m(biaxial type),40-25kn/m to 600-400kn/m(uniaxial type).

Polyester Biaxial Geogrid with CE/ISO9001 Certification Mesh Size 25mm*25mm 's Leading 1

Woven pet grid is created through interlacing, usually at right angles, two or more yarns or filaments.

Exterior of pet grid is coated with polymer or nontoxic substance material for uv ,acid and alkali resistance and prevents the bio-decomposition.

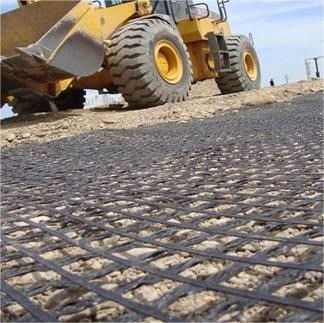

Pet grid is widely introduced to the various fields of civil engineering, transportation engineering, and environment issues. The reinforced steep slopes , reinforced retaining earth walls, reinforced embankments, reinforced abutments and piers are typical applications where geogrids are used. The resulting grid structure possesses large openings that enhance interaction with filling material.

Product Function

1.For strengthening weak sub grades of high-grade roads and railways, and the separation of different foundation soil materials.

2.For the reinforcement of riverbanks and bank slopes.

3.For the enhancement of a variety of foundations.

4.For strengthening of road bridges.

Polyester Biaxial Geogrid with CE/ISO9001 Certification Mesh Size 25mm*25mm 's Leading 2

Specification

Biaxial Type Specification

Property		Test Method	PET 20-20	PET 30-30	PET 40-40	PET 50-50	PET 60-60	PET 80-80	PET 100-100	PET 110-110	PET 120-120	PET 150-150	PET 180-180	PET 400-400
Ultimate Tensile Strength(1)(KN/M)	MD	EN ISO 10139	20	30	40	50	60	80	100	110	120	150	180	400
Ultimate Tensile Strength(1)(KN/M)	CD		20	30	40	50	60	80	100	110	120	150	180	400
Elongation at Maximum Load(%)	MD		3
Elongation at Maximum Load(%)	CD		3
Approximate Mesh Size(MM)			12.712.7 25.425.4 40*40
Roll Width(M)			1-6
Roll Length(M)			50-200

Uniaxial Type Specification

Property		Test Method	PET 40-25	PET 50-35	PET 60-30	PET 80-30	PET 100-30	PET 120-30	PET 150-30	PET 180-30	PET 200-30	PET 300-30	PET 400-30	PET 500-30	PET 600-30
Ultimate Tensile Strength(1)(KN/M)	MD	EN ISO 10139	20	30	40	50	60	80	100	110	120	150	180	400
Ultimate Tensile Strength(1)(KN/M)	CD		20	30	40	50	60	80	100	110	120	150	180	400
Elongation at Maximum Load(%)	MD		3
Elongation at Maximum Load(%)	CD		3
Approximate Mesh Size(MM)			12.712.7 25.425.4 40*40
Roll Width(M)			1-6
Roll Length(M)			50-200

Polyester Biaxial Geogrid with CE/ISO9001 Certification Mesh Size 25mm*25mm 's Leading 3

Process&Application

Polyester Biaxial Geogrid with CE/ISO9001 Certification Mesh Size 25mm*25mm 's Leading 4

80-80 PET Geogrid For Roadbed Solidification And Onsite Training

Type: Geogrids

Warranty: NONE

After-sale Service: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
