Product Details:
|
| Warranty: | 1 Year | After-sale Service: | Online Technical Support |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design | Application: | Park, Waterproofing Liner,Waterstop |
| Design Style: | Traditional | Material: | Sodium Bentonite |
| Color: | Black,white,etc | Length: | Normal 30m |
| Width: | 1m-6m Normal 5.8m | Usage: | Artificial Lake,refuse Landfill,fish Farm |
| Keyword: | Geosynthetic Clay Liner,bentonite Waterproof Pad | Product Name: | Anti-seepage Blanket Geosynthetic Clay Liner Bentonite Waterproof Pad |
| Weight: | 4000gsm4300gsm4500gsm5000gsm5500gsm6000gsm7000gsm | Certifications: | ASTM |
|

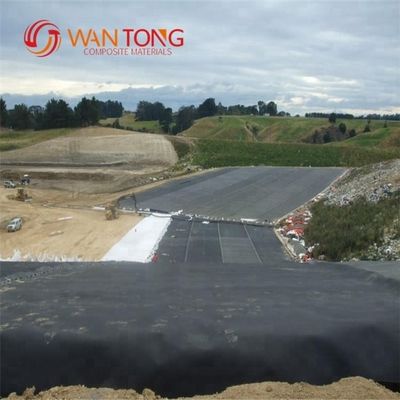

-Landfills
|
|
-Waste Water Pits
|
-Canals
|
-Floating Covers
|
|
|
-Lagoons
|
|
-Vertical Cutoff Walls
|
-Tank Lining
|
-Hydraulic Structure
|
|
|
-Bund Lining
|
|
-Basement Lining
|
-Roof Lining
|
-Drip Irrigation Ponds
|
|
|
-Fish Farm Lining
|
|
-Mud Pits
|
-Ponds and Reservoirs
|
|
|
|
Inspection Item
|
Testing Procedure
|
Technical Index
|
|
Bentonite mass for unit area
|
ASTMD5993
|
≥5.5kg/m2
|
|
Expansion coefficient
|
ASTMD5890
|
≥ 26mL/2g
|
|
Low temperature ductility
|
ASTMD5898
|
No impact at -35°C
|
|
Thickness
|
ASTMD5892
|
≥6.4mm
|
|
Tensile strength
|
ASTMD4632
|
≥540N
|
|
Peel strength of concrete face
|
ASTMD4632
|
≥3.0 KN/ m2
|
|
Peel strength
|
ASTMD4632
|
≥68N
|
|
Indicated flow
|
ASTMD5887
|
≤1 × 10-8m3/m2/sec
|
|
Hydrostatic pressure resistance
|
ASTMD5888
|
≥70
|
|
Permeability
|
ASTMD5887
|
≤5 × 10-12cm/sec
|
|
Extension rate
|
ASTMD5896
|
≥20
|
|
Puncture strength
|
ASTMD5894
|
≥635N
|
