Black Bentonite Gcl for Waterproofing Bentomat Geotextile HDPE Bonder Liner Waterstop

Large Image : Black Bentonite Gcl for Waterproofing Bentomat Geotextile HDPE Bonder Liner Waterstop

Product Details:

Place of Origin:	Shandong, China
Brand Name:	WanTong
Model Number:	4000gsm-7000gsm

Payment & Shipping Terms:

Minimum Order Quantity:	1000 square meters
Price:	$3.50/square meters 1000-4999 square meters
Packaging Details:	pp woven fabric<br>Sodium Bentonite Geosynthetic Clay Liner GCL with HDPE Geomembrane
Supply Ability:	1000000 Square Meter/Square Meters per Month

Contact Now

Black Bentonite Gcl for Waterproofing Bentomat Geotextile HDPE Bonder Liner Waterstop

Description

Warranty:	1 Year	After-sale Service:	Online Technical Support
Project Solution Capability:	Graphic Design, 3D Model Design	Application:	Park, Waterproofing Liner,Waterstop
Design Style:	Traditional	Material:	Sodium Bentonite
Color:	Black,white,etc	Length:	Normal 30m
Width:	1m-6m Normal 5.8m	Usage:	Artificial Lake,refuse Landfill,fish Farm
Keyword:	Geosynthetic Clay Liner,bentonite Waterproof Pad	Product Name:	Anti-seepage Blanket Geosynthetic Clay Liner Bentonite Waterproof Pad
Weight:	4000gsm4300gsm4500gsm5000gsm5500gsm6000gsm7000gsm	Certifications:	ASTM

Product Description

The Geosynthetic Clay Liner is a high-tech, green, composite waterproof material.

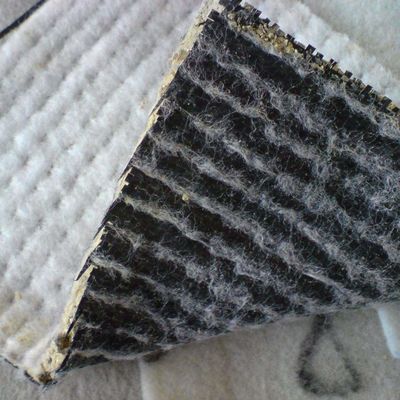

GCL is a geosynthetic material specially used for anti-seepage in artificial lakes, waterscapes, landfills, underground garages,roof gardens, pools, oil depots and chemical storage yards. It is made of highly expansive sodium bentonite Filled between a special composite geotextile and a non-woven fabric, the bentonite impermeable mat made by needle punching can form many small fiber spaces.

The product also has other titles, such as bentonite waterproof pad, bentonite anti-seepage blanket, bentonite waterproof felt, bentonite anti-leakage pad, bentonite blanket, bentonite pad.

APPLICATION

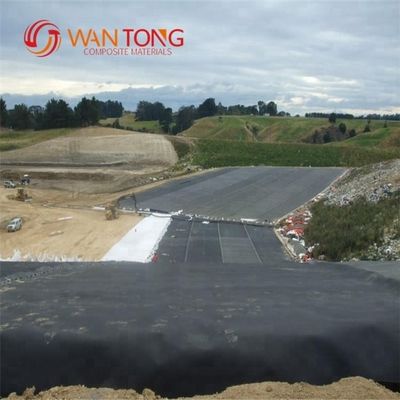

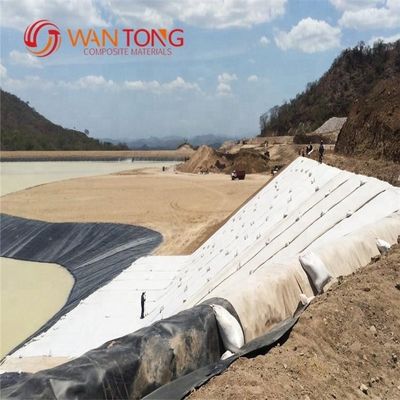

-Landfills	-Waste Water Pits	-Canals	-Floating Covers
-Lagoons	-Vertical Cutoff Walls	-Tank Lining	-Hydraulic Structure
-Bund Lining	-Basement Lining	-Roof Lining	-Drip Irrigation Ponds
-Fish Farm Lining	-Mud Pits	-Ponds and Reservoirs

Specification

Inspection Item	Testing Procedure	Technical Index
Bentonite mass for unit area	ASTMD5993	≥5.5kg/m2
Expansion coefficient	ASTMD5890	≥ 26mL/2g
Low temperature ductility	ASTMD5898	No impact at -35°C
Thickness	ASTMD5892	≥6.4mm
Tensile strength	ASTMD4632	≥540N
Peel strength of concrete face	ASTMD4632	≥3.0 KN/ m2
Peel strength	ASTMD4632	≥68N
Indicated flow	ASTMD5887	≤1 × 10-8m3/m2/sec
Hydrostatic pressure resistance	ASTMD5888	≥70
Permeability	ASTMD5887	≤5 × 10-12cm/sec
Extension rate	ASTMD5896	≥20
Puncture strength	ASTMD5894	≥635N

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
