Product Details:
|
| Technique: | Chopped Strand Fiberglass Mat (CSM) | Mat Type: | Stitch Bonding Chop Mat |
|---|---|---|---|
| Fiberglass Type: | E-glass | Softness: | Intermediate Hardness |
| Weight: | 100g~600g | Tensile Strength (Longitudinal): | ≥30KN/150mm |
| Tensile Strength (Transverse): | ≥30KN/150mm | Combustible Matter Content: | 1.8%~8.5% |
| Roll Width: | 1040mm. 1250mm. 1400mm | Wet-out Rate: | ≤40s |
| Moisture Content: | ≤0.2% | Color: | Silver |
| Use: | Fishing Boat, Automobile Accessories | Packaging: | PE Membrane And Carton |
| Port: | QingDao Port |
The description of EMC EMCL taishan fiberglass chopped strand mat
EMC Fiberglass Chopped Strand Mat is made of randomly dispersed strands with powder bonded. The feature as follow: Consistent thickness and stiffness, Rapid impregnating and good compatibility with resin, Superior wet through with less air trap, Good mechanical properties and high strength of parts.
The Usage of EMC EMCL taishan fiberglass chopped strand mat
The Specification of EMC EMCL taishan fiberglass chopped strand mat
| Item | Mass (g/m2) | Tensile strength (N/150mm) | Combustible matter content | Roll width (mm) | Wet-out rate (s) | Moisture content | |
| Longitudinal | Transverse | ||||||
| EMC 100 | 100g±22g | ≥30KN/150mm | ≥30KN/150mm | 1.8%~8.5% | 1040/1270 | ≤40 | ≤0.2% |
| EMC 200 | 200g±22g | ≥40KN/150mm | ≥40KN/150mm | 1.8%~8.5% | 1040/1270 | ≤60 | ≤0.2% |
| EMC 225 | 225g±22g | ≥40KN/150mm | ≥40KN/150mm | 1.8%~8.5% | 1040/1270 | ≤60 | ≤0.2% |
| EMC 300 | 300g±22g | ≥60KN/150mm | ≥60KN/150mm | 1.8%~8.5% | 1040/1270 | ≤80 | ≤0.2% |
| EMC 375 | 375g±20g | ≥60KN/150mm | ≥60KN/150mm | 1.8%~8.5% | 1040/1270 | ≤80 | ≤0.2% |
| EMC 450 | 450g±20g | ≥80KN/150mm | ≥80KN/150mm | 1.8%~8.5% | 1040/1270 | ≤100 | ≤0.2% |
| EMC 600 | 600g±18g | ≥80KN/150mm | ≥80KN/150mm | 1.8%~8.5% | 1040/1270 | ≤100 | ≤0.2% |
| EMCL300 | 300g±22g | ≥60KN/150mm | ≥60KN/150mm | 1.8%~8.5% | 1040/1270 | ≤80 | ≤0.5% |
| EMCL450 | 450g±20g | ≥80KN/150mm | ≥80KN/150mm | 1.8%~8.5% | 1040/1270 | ≤100 | ≤0.5% |
| EMCL600 | 600g±18g | ≥80KN/150mm | ≥80KN/150mm | 1.8%~8.5% | 1040/1270 | ≤100 | ≤0.5% |
| Note | Nonstandard product is available upon customer's request. This data is for reference only | ||||||

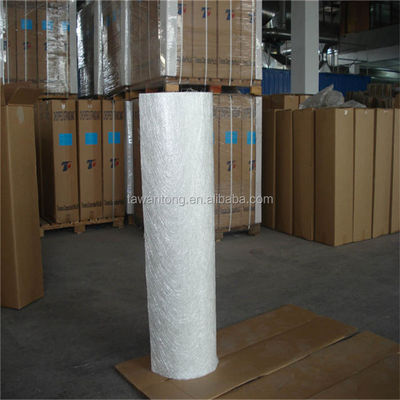

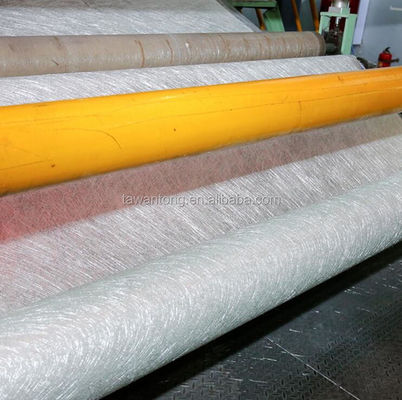

The Workshop of EMC EMCL taishan fiberglass chopped strand mat
Product Pakage: PET bag
Out package: Carboard box or plastic woven bag.
Roll Weight: 20Kg~85Kg
Storage Temperature: 5 °C~35°C
Storage Humidity: 35%~65%
Taian Wantong Composite Material Co.,LTD is specialized in the research,development,production and sales of geosynthetic materials, fiberglass products.Our Company is devoted to geosynthetic material and fiberglass products research, development and application. We have passed ISO 9001, SGS and CE Certificate, etc.
1. How long have you been in the Geo-synthetics industry?
--Since 2007 years.
2. Are you manufacturer or trad company
--We are the manufacture specialized in Geo-synthetics, in Taian city, ShanDong Province, China.
3. How much the transportation freight of sample?
--The freight depends on the weight and packing size and destination from here to your location.
4. How long can I expect to get the sample?
--The samples will be ready for delivery in 3-5days. The samples will be sent via international express such as DHL, TNT, and EMS would be arrived within 3-5 days.
5. Can we have our LOGO or company name to be printed on your products or package?
--Sure, Your LOGO could be printed on your product by Hot stamping, Printing, Embossing, UV coating, Silk-screen Printing or Sticker.
6. Do you have stock?
--Most of product are under regular production, we can make delivery immediately if we the specific one in stock.
